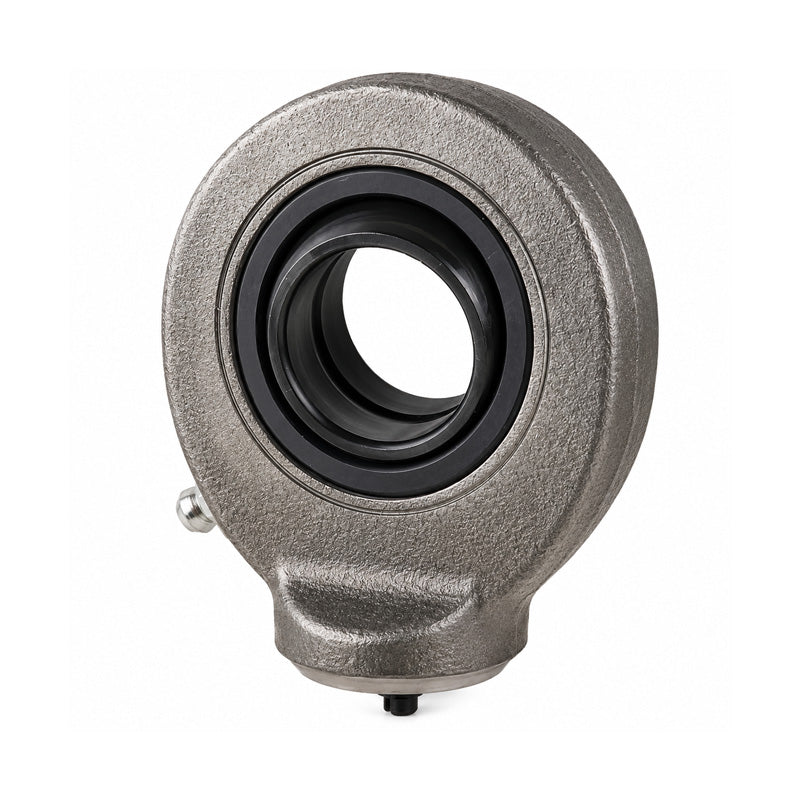

• Durbal DGK40DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin
  • Durbal
1 2

SKU: DGK40DO-DURB

Durbal DGK40DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin

Durbal DGK40DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin
$47.34 ex VAT
$47.34 ex VAT
Sale Sold out

Equivalent to: GK40DO SC40ES

In stock

Price Break
10+ $31.71
19+ $29.93
29+ $29.57
39+ $29.22
49+ $28.86
74+ $28.50
99+ $26.72
199+ $26.37
249+ $26.01
499+ $25.65
999+ $24.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread M / F:
Female
Inside Diameter:
40mm
Technical
d 40mm
d1 45mm
d2 92mm
d5 52mm
d6 4mm
dk 53mm
B 28mm
C1 23mm
l6 115mm
l7 48mm
l8 6mm
h2 69mm
Tilt angle α 7 deg
Weight 1.3kg
Basic Load Rating dyn C 99 kN
Basic Load Rating stat Co 124.8 kN
Radial Clearance CN 8-120 µm
