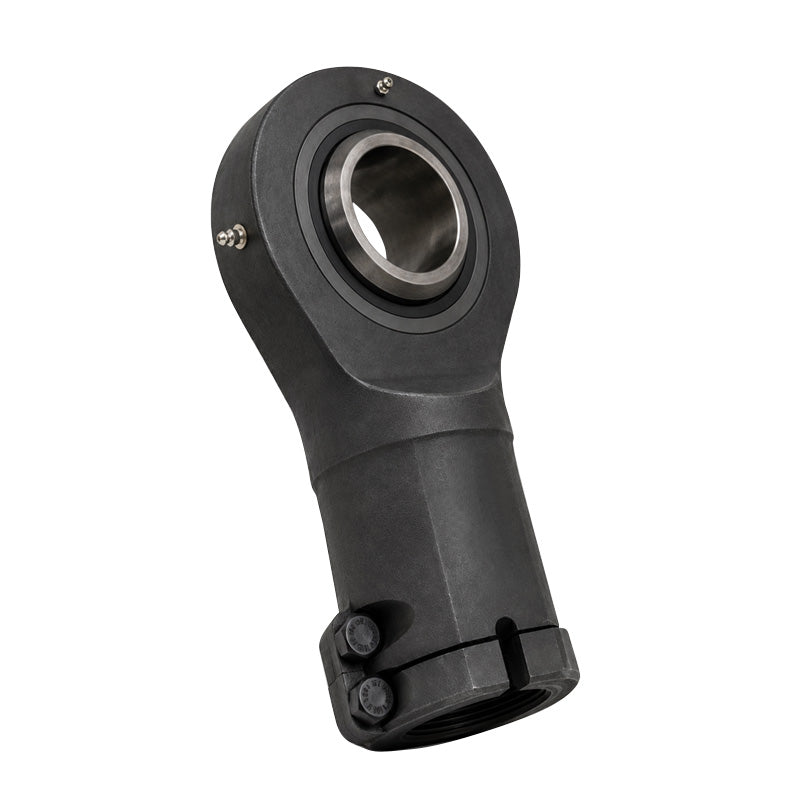

Durbal DGK70SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M80x3 Thread
Durbal DGK70SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M80x3 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M80x3
- Thread M / F:
- Female
- Inside Diameter:
- 50mm
Technical
Technical

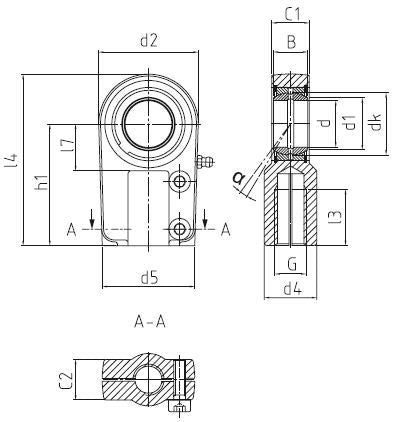

| d | 70mm |
|---|---|
| d1 | 77.8mm |
| d2 | 154mm |
| d4 | 105mm |
| d5 | 138mm |
| dk | 92mm |
| G (Thread) | M80x3mm |
| B | 55mm |
| C1 | 49mm |
| C2 | 51mm |
| l3 | 110mm |
| l4 | 278mm |
| l7 | 75mm |
| h1 | 195mm |
| tilt angle α | 6 deg |
| weight | 9.5kg |
| basic load rating dyn C | 252 kN |
| basic load rating stat Co | 576 kN |
| radial clearance CN | 8-142 µm |
