SKU: DKOR-24-38-FLEX

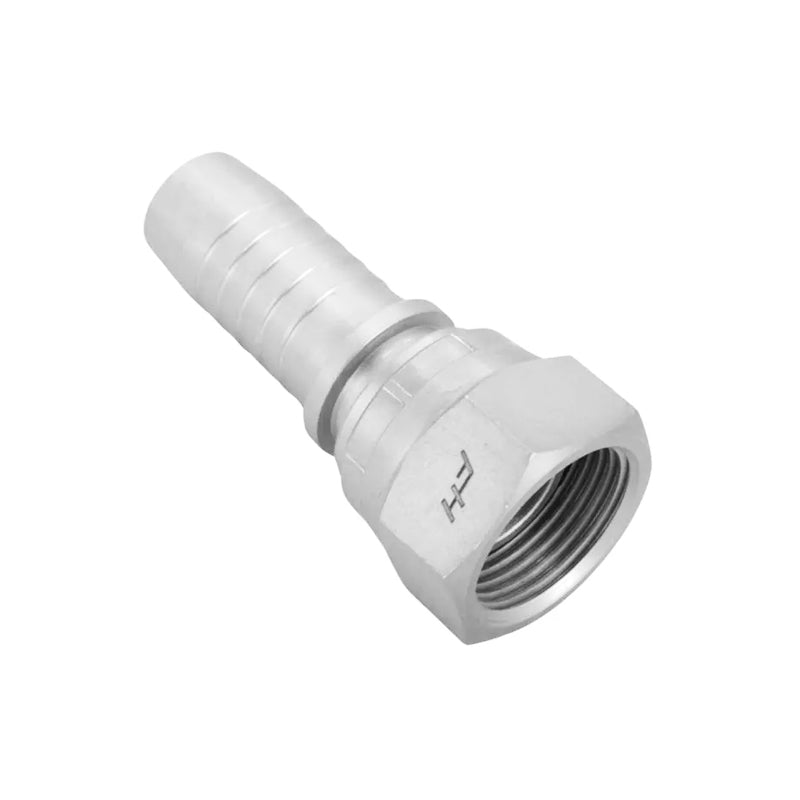

FLEXEQUIP/VOSS 1-1/2 inch BSP Female Two Piece Hose Fitting with O-Ring and 27mm Crimp Nut - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
FLEXEQUIP/VOSS Female Two Piece Hose Fitting with O-Ring and Crimp Nut: These hose fittings are forged ball-type fittings, commonly used across the UK and Ireland for agricultural and standard hydraulic applications. Featuring an o-ring for enhanced sealing, this compact elbow fitting meets ISO 12151-6 (ISO 8434-6) standards, ensuring leak-free and reliable performance. Precision-engineered for perfect alignment between fittings and couplings, it offers excellent durability, assembly reliability, and versatility, optimizing the efficiency and longevity of your hydraulic systems.
Benefits: Precision engineered, provide perfect alignment, leakage and assembly reliability
- Brand / Quality:
- FLEXEQUIP/VOSS - High Quality
- Thread Size:
- 1-1/2 inch BSP
- Length:
- 105mm
- Type:
- DKOR
- Angle:
- 60 degrees
Technical
| Hose Bore | 1-1/2 inch |
|---|---|
| Thread (d2) | 1-1/2 inch |
| DN Size | 38mm |
| Total Length (lg) | 105mm |
| Length (lh) | 47mm |
| Cut Off (lx) | 34mm |
| Bore Size (dx) | 32mm |
| Nut Size (SW) | 55mm |
| Angle | 60 degrees |
| Weight | 0.519 kg |
