SKU: DKR-10-16-FLEX

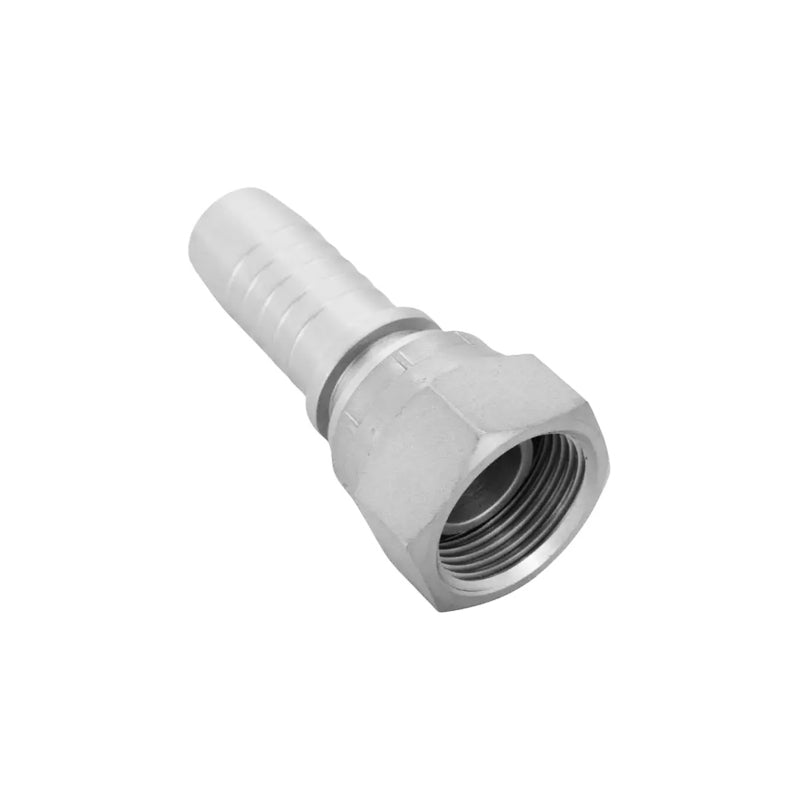

FLEXEQUIP/VOSS 5/8 inch BSP Female Two Piece Hose Fitting with 60 Degree Cone and 27mm Crimp Nut - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
FLEXEQUIP/VOSS Female Two Piece Hose Fitting with 60 Degree Cone and Crimp Nut: These fittings are the preferred choice for agricultural and standard hydraulic applications in the UK and Ireland. Featuring a BSP thread with a 60 degree tapered cone, this fitting meets ISO 12151-6 (ISO 8434-6) standards, providing reliable, leak-free connections. The crimp nut ensures a secure, durable assembly, making it ideal for high-pressure environments. Precision-engineered for perfect alignment between fittings and couplings, this fitting delivers exceptional versatility and durability, built on decades of industry expertise.
Benefits: Precision engineered, provide perfect alignment, leakage and assembly reliability
- Brand / Quality:
- FLEXEQUIP/VOSS - High Quality
- Thread Size:
- 5/8 inch BSP
- Length:
- 64mm
- Type:
- DKR
- Angle:
- * Straight
- Cone Angle:
- 60 degrees
Technical
| Hose Bore | 5/8 inch |
|---|---|
| Thread (d2) | G 5/8 inch |
| DN Size | 16mm |
| Total Length (lg) | 64mm |
| Length (lh) | 30mm |
| Cut Off (lx) | 20mm |
| Bore Size (dx) | 13mm |
| Nut Size (SW) | 30mm |
| Angle | * Straight degrees |
| Cone Angle | 60 degrees |
| Weight | 0.106 kg |
