SKU: DKR90-06-10-OPF-FLEX

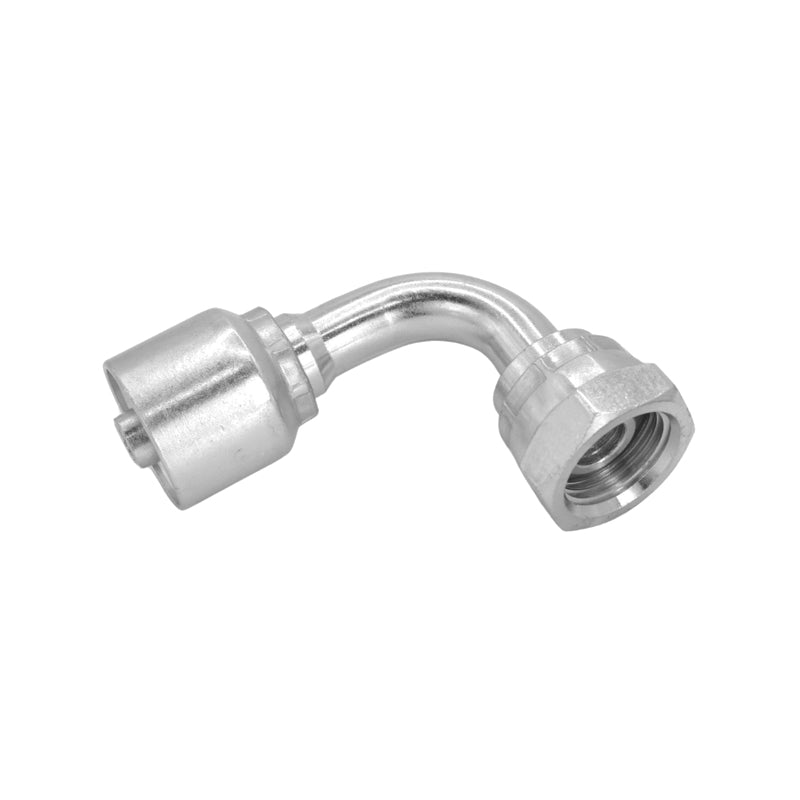

FLEXEQUIP 3/8 inch BSP Female One Piece Hose Fitting with 90 Degree Angle 60 Degree Cone and 22mm Crimp Nut - Allow 2-3 Days
FLEXEQUIP 3/8 inch BSP Female One Piece Hose Fitting with 90 Degree Angle 60 Degree Cone and 22mm Crimp Nut - Allow 2-3 Days
Regular price
$8.64
ex VAT
Regular price
Sale price
$8.64
ex VAT
In stock
Price Break
3+
$5.78
5+
$5.46
9+
$5.39
19+
$5.33
49+
$5.26
74+
$5.20
99+
$4.87
199+
$4.81
249+
$4.74
499+
$4.68
999+
$4.55
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- FLEXEQUIP - High Quality
- Thread Size:
- 3/8 inch BSP
- Length:
- 61mm
- Angle:
- 90 degrees
- Cone Angle:
- 60 degrees
Technical
Technical
| Thread (d2) | 3/8 inch |
|---|---|
| Hose Bore | 3/8 inch |
| Hose Bore | 10mm |
| Total Length (lg) | 61mm |
| Cut Off (lx) | 38mm |
| Length (lh) | 33mm |
| Nut Size (SW) | 22mm |
| Angle | 90 degrees |
| Cone Angle | 60 degrees |
| Material | Zinc-Nickel Coated Steel |
| Weight | 0.117 kg |
