SKU: DPOS08-DURB

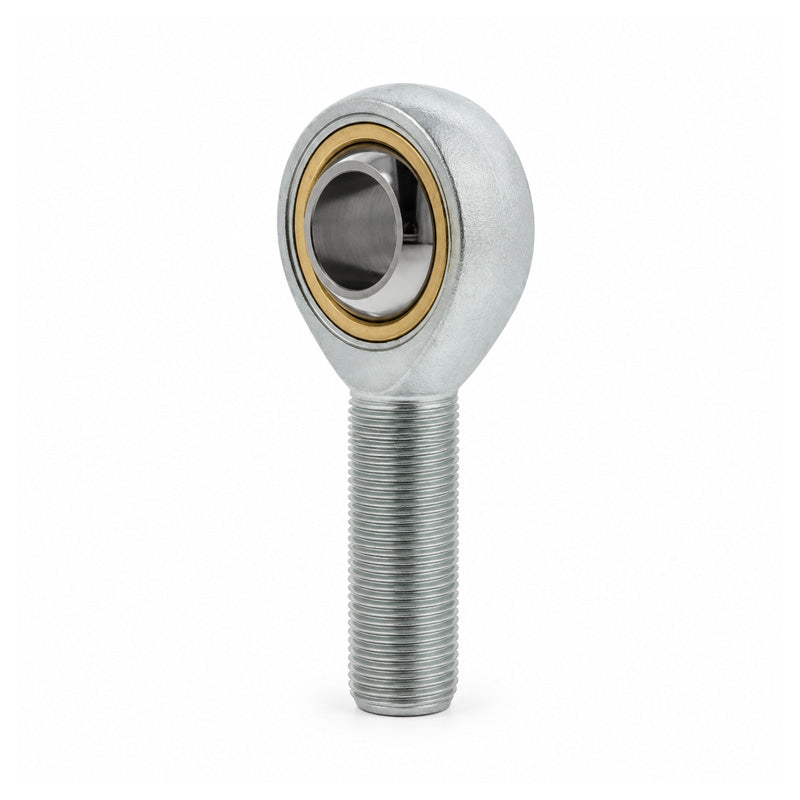

Durbal DPOS08 Maintenance Required Right Hand Metric Steel Male Rod End M8 Thread - Allow 2-3 Days
Durbal DPOS08 Maintenance Required Right Hand Metric Steel Male Rod End M8 Thread - Allow 2-3 Days
Regular price
$13.24
ex VAT
Regular price
Sale price
$13.24
ex VAT
Equivalent to: GAKR8PB SAKAC8M
In stock
Price Break
10+
$9.86
19+
$9.46
29+
$9.26
39+
$8.96
49+
$8.76
74+
$8.27
99+
$6.97
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DURBAL Standard Maintenance Required Male Rod Ends with Pressed Spherical-Plain Bearing: Threaded male rod end consisting of a galvanised, heat-treated, forged steel housing with a bearing brass outer ring with oil groove and drill holes and a steel joint ball. Suitable for use with axial loads. Made of forged and heat-treated steel, protected against corrosion by galvanisation. Rod ends can be greased subsequently by means of a funnel-type lubrication nipple. Temperature range: -40 deg C to +110 deg C.
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M8
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 8mm

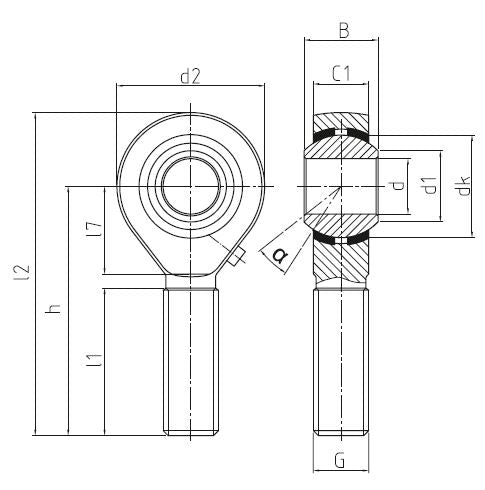

Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 8mm |
| d1 | 10.3mm |
| d2 | 22mm |
| dk | 15.88mm |
| G (Thread) | M8mm |
| B | 12mm |
| C1 | 9mm |
| l1 | 25mm |
| l2 | 53mm |
| l7 | 11mm |
| h | 42mm |
| tilt angle α | 14 deg |
| weight | 0.03kg |
| basic load rating dyn C | 4.3 kN |
| basic load rating stat Co | 9.3 kN |
| radial clearance CN | 8-55 µm |
