SKU: DSA08-T/K-DURB

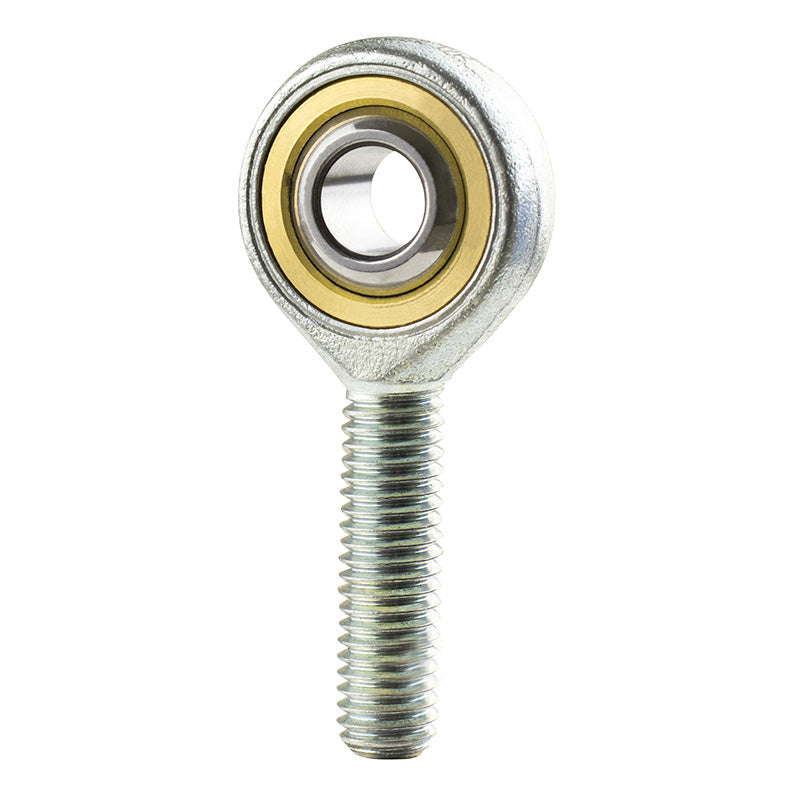

Durbal DSA08-T/K Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M8 Thread

Name: Durbal DSA08-T/K Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M8 Thread
Brand: Durbal
SKU: DSA08-T/K-DURB
Price: 23.60 USD
Availability: InStock

$23.60 ex VAT

Sale Sold out

Equivalent to: GAKR8PW SAKB8F

In stock

Price Break

10+ $15.81

19+ $14.92

29+ $14.74

39+ $14.56

49+ $14.39

74+ $14.21

99+ $13.32

199+ $13.14

249+ $12.96

499+ $12.79

999+ $12.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M8
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 8mm
Material:: PTFE Lined

Technical

Thread Direction	Right
d	8mm
d1	10.3mm
d2	24mm
dk	15.88mm
G (Thread)	M8mm
B	12mm
C1	9mm
l1	25mm
l2	54mm
l7	13mm
h	42mm
tilt angle α	14 deg
weight	0.038kg
basic load rating dyn C	6.1 kN
basic load rating stat Co	10.3 kN
radial clearance CN	0-32 µm
