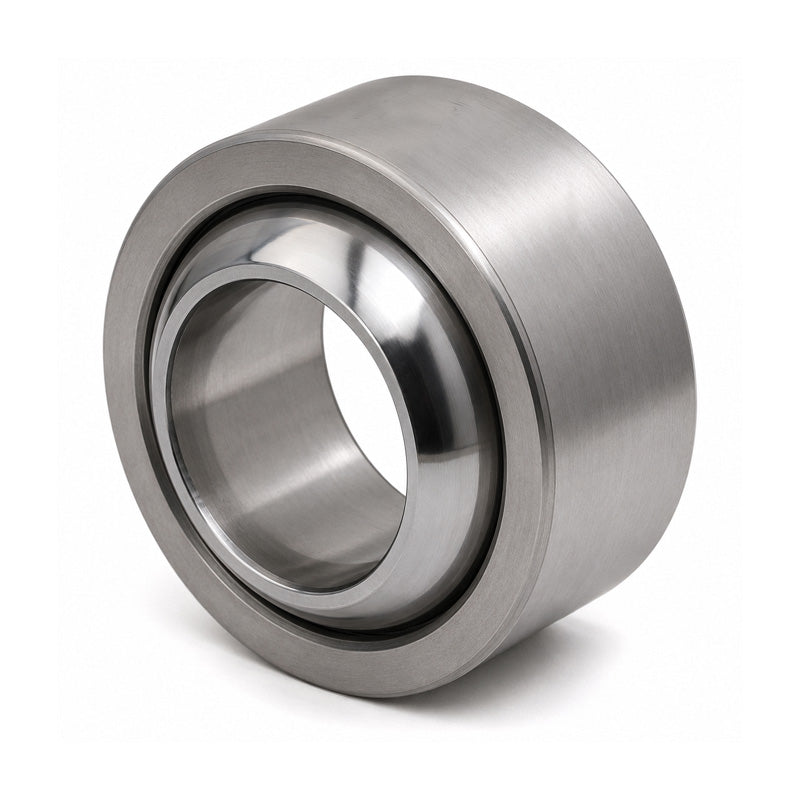

Durbal DSB115 Maintenance Required Steel Spherical Plain Bearing 115x180x98mm

DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated steel outer ring, split at two points, with oil groove and drill holes. For use with heavy shock loads, therefore is particularly suitable for the vibration range with slow, heavy movements. The spherical plain bearing has a large contact area in the joint ball area, which is why it is preferred for heavy loads. The outer ring is split in two places to accommodate the joint ball. The split outer ring and the joint ball are held together by a snap ring in the groove around the outer ring. Temperature range: -40 deg C to +110 deg C.

Brand / Quality:

Durbal - High Quality

Inside Diameter:

115mm
