SKU: DSIL06-T/K-DURB

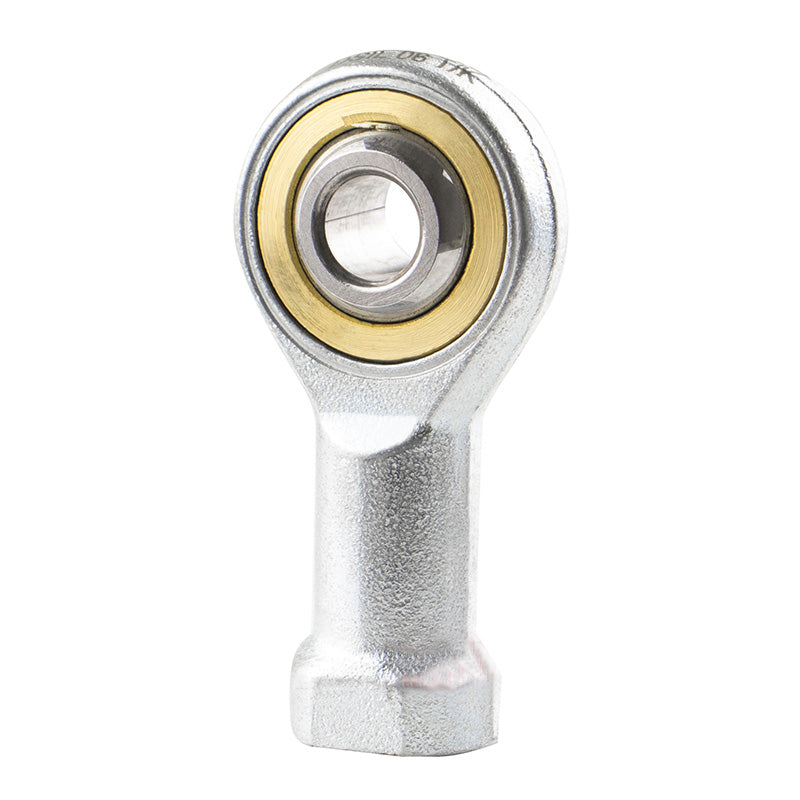

Durbal DSIL06-T/K Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M6 Thread

Name: Durbal DSIL06-T/K Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M6 Thread
Brand: Durbal
SKU: DSIL06-T/K-DURB
Price: 26.97 USD
Availability: InStock

$26.97 ex VAT

Sale Sold out

In stock

Price Break

10+ $18.07

19+ $17.05

29+ $16.85

39+ $16.65

49+ $16.44

74+ $16.24

99+ $15.23

199+ $15.02

249+ $14.82

499+ $14.62

999+ $14.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M6
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 6mm
Material:: PTFE Lined

Technical

Thread Direction	Left
d	6mm
d1	8.9mm
d2	20mm
d3	10mm
d4	13mm
dk	12.7mm
G (Thread)	M6mm
B	9mm
C1	6.75mm
l3	12mm
l4	40mm
l5	5mm
l7	11mm
W	11mm
h1	30mm
tilt angle α	13 deg
weight	0.022kg
basic load rating dyn C	3.7 kN
basic load rating stat Co	6.2 kN
radial clearance CN	0-32 µm
