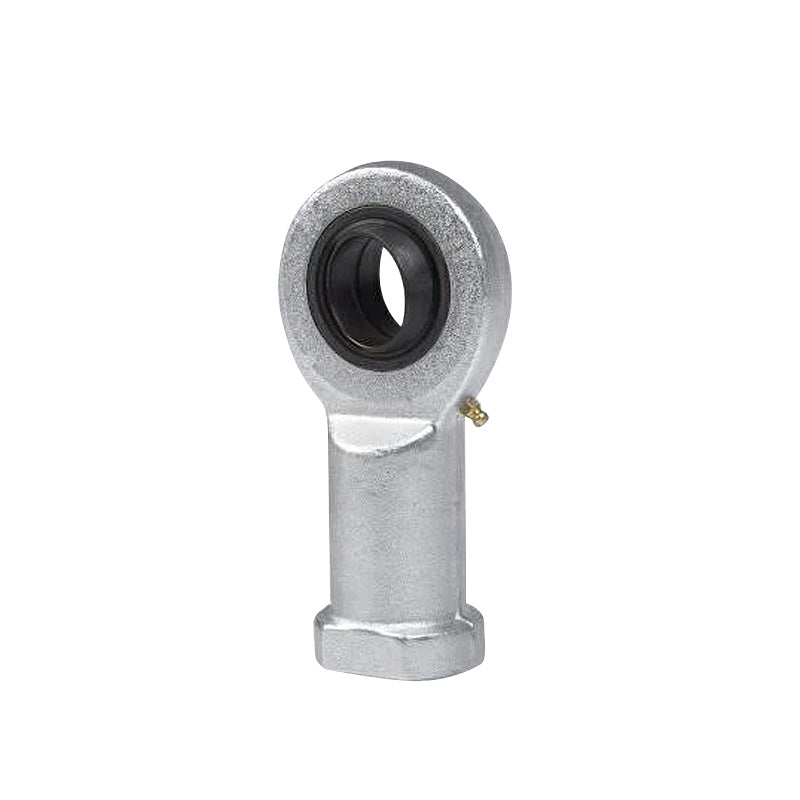

Durbal DSIL25ES Maintenance Required Left Hand Metric Steel Female Rod End M24x2 Thread

DURBAL Standard Maintenance Required Female Rod Ends with Pressed Spherical-Plain Bearing: Threaded female rod end consisting of a galvanised, heat-treated, forged steel housing with a steel, hardened, ground, phospated outer ring with oil groove and drill holes and a steel joint ball(Outer ring has a split from size 15). Suitable for use with high alternating loads. Made of forged and heat-treated steel, protected against corrosion by galvanisation. Rod ends from size 15 can be greased subsequently by means of a funnel-type lubrication nipple, and from size 20 by means of a conical grease nipple. Temperature range: -40 deg C to +200 deg C.

Brand / Quality:

Durbal - High Quality

Thread Size:

M24x2

Thread M / F:

Female

Thread Direction:

Left Hand

Inside Diameter:

25mm
