SKU: E25-KLL-INA

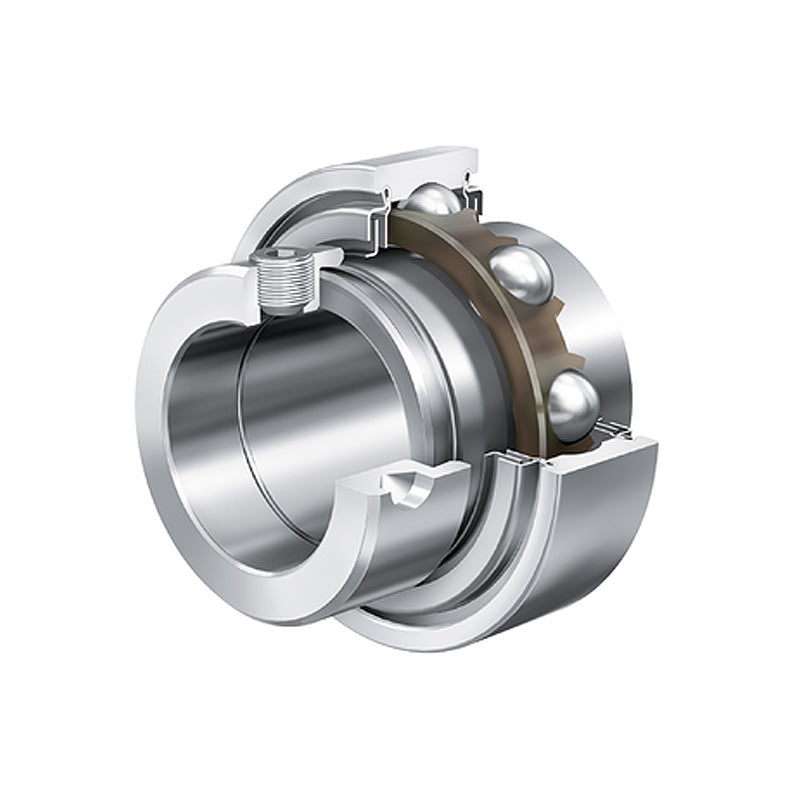

INA E25XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 25x52x44.5mm
INA E25XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 25x52x44.5mm
Regular price
$47.25
ex VAT
Regular price
Sale price
$47.25
ex VAT
In stock
Price Break
3+
$31.65
5+
$29.87
10+
$29.51
15+
$29.16
20+
$28.80
30+
$28.45
40+
$26.67
50+
$26.31
60+
$25.96
75+
$25.60
100+
$24.89
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
INA E..-KLL Series Inserts: Bearing insert with parallel outer race, L seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 44.5mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B1 | 44.5mm |
| B | 34.9mm |
| C | 15mm |
| C2 | 20.2mm |
| D1 | 42.5mm |
| d1 | 33.8mm |
| d3 max | 37.5mm |
| S | 17.5mm |
| W | 3mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.25 kg |
