SKU: EAL60D2RS-FLURO

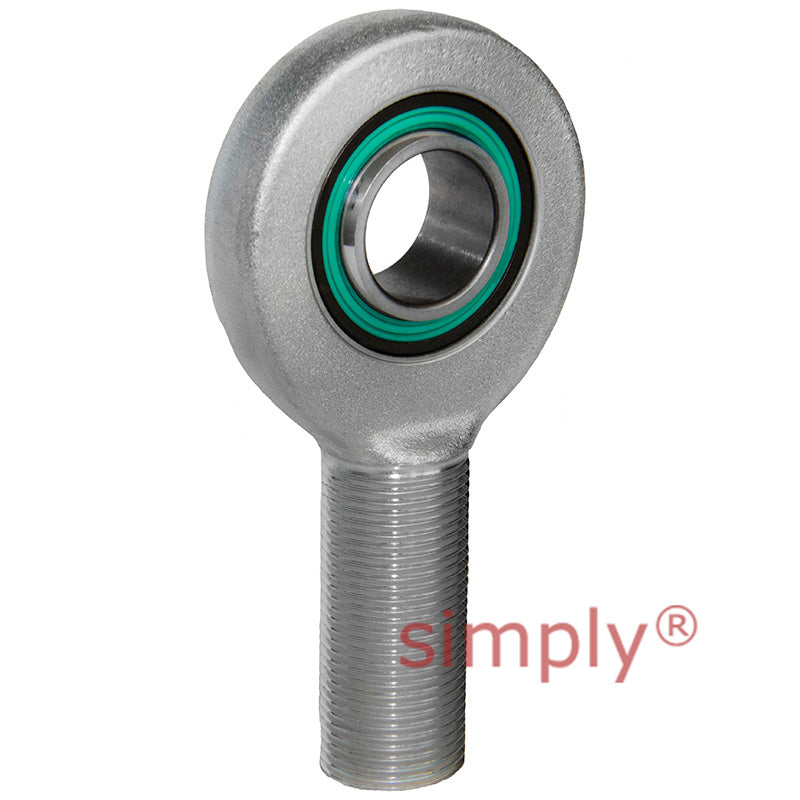

Fluro EAL60D2RS Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M52x3 Thread
Fluro EAL60D2RS Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M52x3 Thread
Out of stock
Share this product
Description
Description
Fluro EA..D (-2RS) Series Zinc Plated Steel Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated with maintenance free Spherical Plain Bearings. For use at high unidirectional loads and limited fitting dimensions.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M52x3
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 52x3mm
- Inside Diameter:
- 60mm
- Material:
- Steel / Steel
Technical
Technical
| Bore Size D | 60mm |
|---|---|
| B | 44mm |
| M | 38mm |
| A | 135mm |
| F | 210mm |
| L | 277.5mm |
| O | 66.8mm |
| Thread Size G | M52x3 |
| GL | 115mm |
| Static Load Co | 450kN |
| Dynamic Load | 460kN |
| Approx weight | 5.9kg |
