SKU: EAL70DNIRO-FLURO

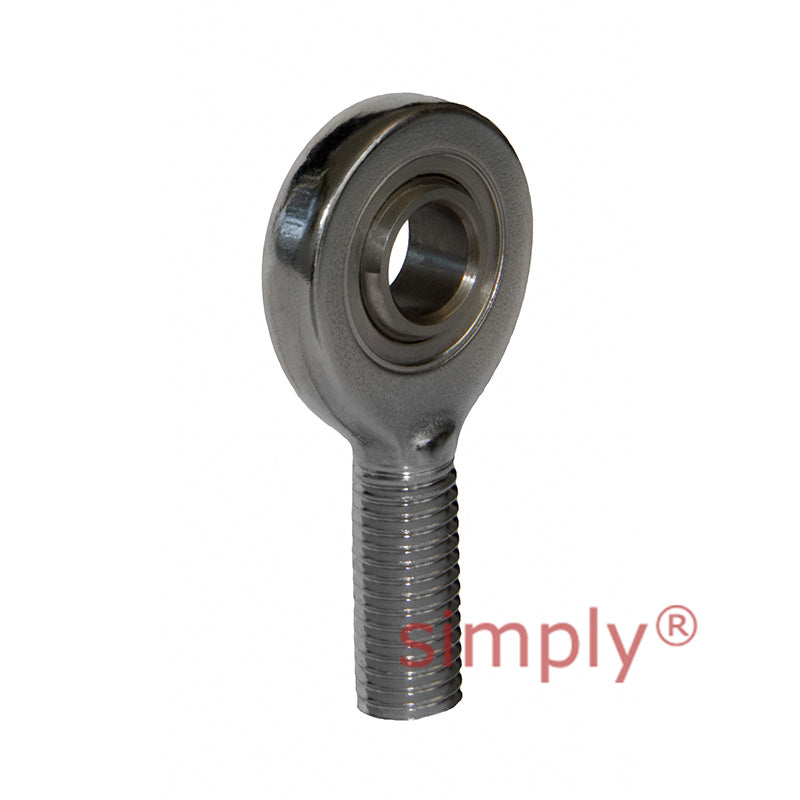

Fluro EAL70DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M56x4 Thread
Fluro EAL70DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M56x4 Thread
Out of stock
Share this product
Description
Description
Fluro EA..D-NIRO Series Stainless Steel Maintenance Free Male Plain Rod Ends: Rod Ends with male thread, maintenance free, made from stainless steel with maintenance free Spherical Plain Bearings GE..EC-NIRO. For use at high unidirectional loads, in corrosive environments and limited fitting dimensions.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M56x4
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 56x4mm
- Inside Diameter:
- 70mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 70mm |
|---|---|
| B | 49mm |
| M | 42mm |
| A | 160mm |
| F | 235mm |
| L | 315mm |
| O | 77.9mm |
| Thread Size G | M56x4 |
| GL | 125mm |
| Static Load Co | 429kN |
| Dynamic Load | 619kN |
| Approx weight | 8.2kg |
