SKU: EALM-10.F

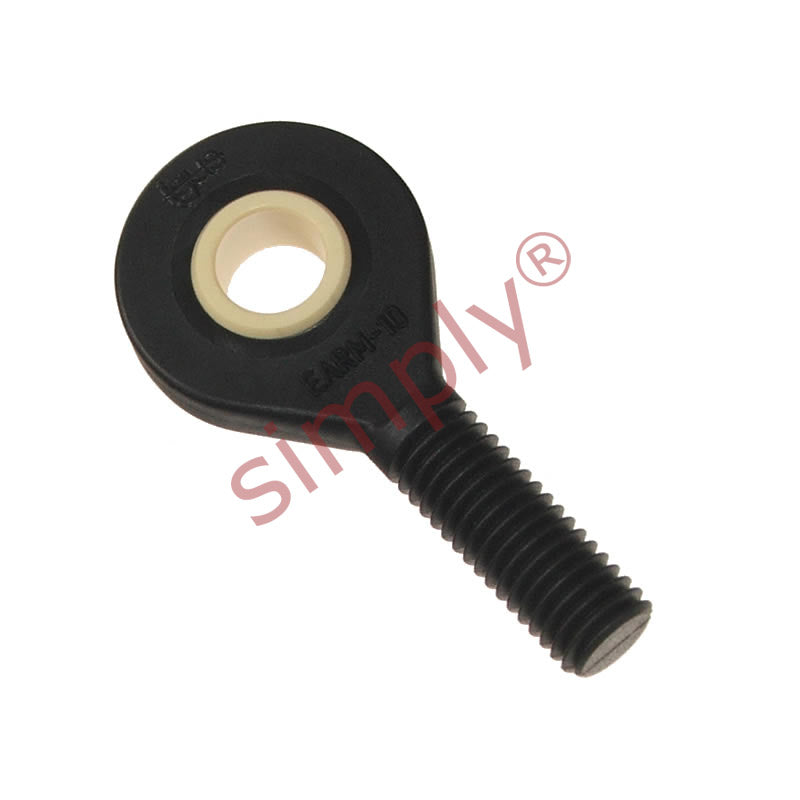

igubal EALM10F Left Hand Male Plastic Rod End 10mm Bore M10x1.25 Thread - Allow 2-3 Days
igubal EALM10F Left Hand Male Plastic Rod End 10mm Bore M10x1.25 Thread - Allow 2-3 Days
Regular price
$19.80
ex VAT
Regular price
Sale price
$19.80
ex VAT
In stock
Price Break
4+
$13.27
9+
$12.52
19+
$12.37
29+
$12.22
39+
$12.07
49+
$11.92
59+
$11.18
69+
$11.03
79+
$10.88
89+
$10.73
99+
$10.43
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M10x1.25
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 10mm
Technical
Technical
| d1 | 10mm |
|---|---|
| d2 | 29mm |
| d3 | M10x1.25 |
| C1 | 7mm |
| B | 9mm |
| h | 47.5mm |
| l1 | 27mm |
| l2 | 62mm |
| Max pivot angle | 24° |
| Max static tensile strength (short term) | 2600 N |
| Max static tensile strength (long term) | 1300 N |
| Max radial load (short term) | 250 N |
| Max radial load (long term) | 125 N |
| Min thread depth | 19mm |
| Max torque outside thread | 3 Nm |
| Max torque through ball | 14 Nm |
| Weight | 8.4 g |
