SKU: EALM-15

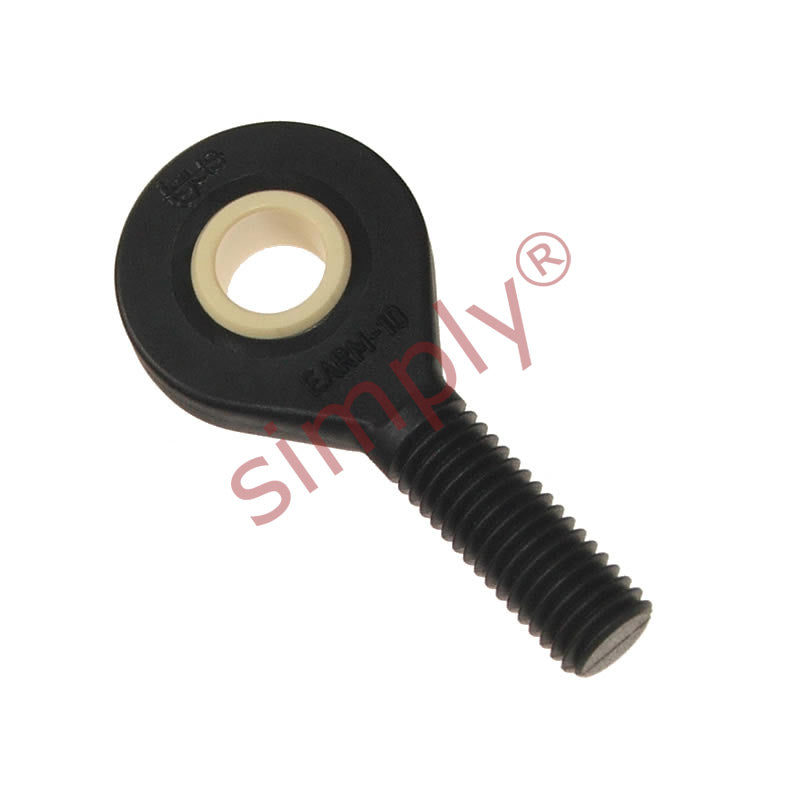

igubal EALM15 Left Hand Male Plastic Rod End 15mm Bore M14 Thread - Allow 2-3 Days
igubal EALM15 Left Hand Male Plastic Rod End 15mm Bore M14 Thread - Allow 2-3 Days
Regular price
$22.57
ex VAT
Regular price
Sale price
$22.57
ex VAT
In stock
Price Break
4+
$15.12
9+
$14.27
19+
$14.10
29+
$13.93
39+
$13.76
49+
$13.59
59+
$12.74
69+
$12.57
79+
$12.40
89+
$12.23
99+
$11.89
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M14
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 15mm
Technical
Technical
| d1 | 15mm |
|---|---|
| d2 | 40mm |
| d3 | M14 |
| C1 | 10mm |
| B | 12mm |
| h | 63mm |
| l1 | 34mm |
| l2 | 83mm |
| Max pivot angle | 21° |
| Max static tensile strength (short term) | 3400 N |
| Max static tensile strength (long term) | 1700 N |
| Max radial load (short term) | 600 N |
| Max radial load (long term) | 300 N |
| Min thread depth | 24mm |
| Max torque outside thread | 12.5 Nm |
| Max torque through ball | 30 Nm |
| Weight | 21.1 g |
