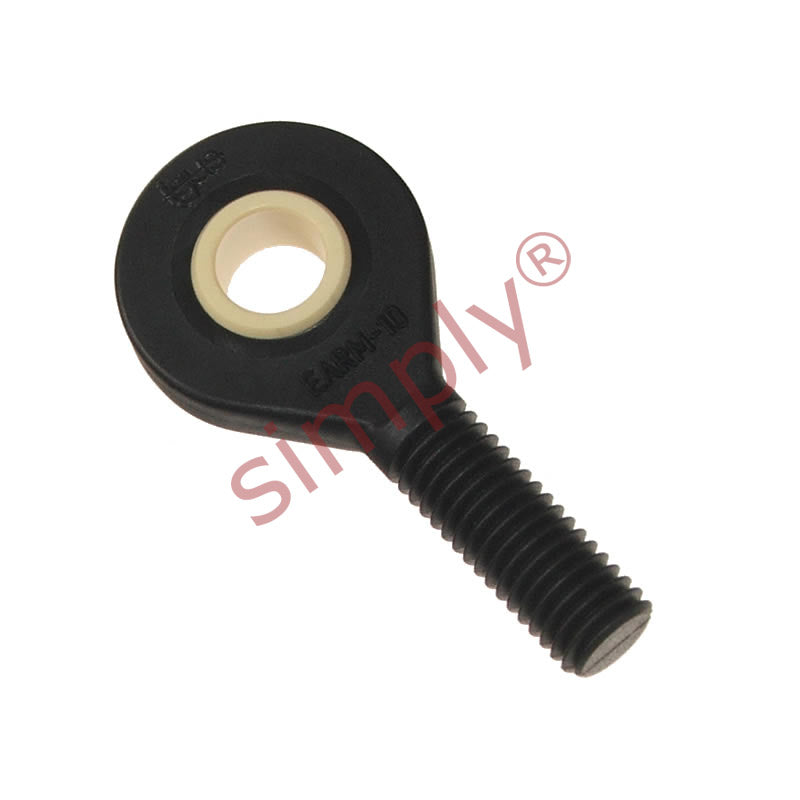

• igubal EARM10 Right Hand Male Plastic Rod End 10mm Bore M10 Thread
  • Igus
1 2

SKU: EARM-10

igubal EARM10 Right Hand Male Plastic Rod End 10mm Bore M10 Thread

igubal EARM10 Right Hand Male Plastic Rod End 10mm Bore M10 Thread
$18.36 ex VAT
$18.36 ex VAT
Sale Sold out

In stock

Price Break
4+ $12.30
9+ $11.61
19+ $11.47
29+ $11.34
39+ $11.20
49+ $11.06
59+ $10.37
69+ $10.23
79+ $10.09
89+ $9.95
99+ $9.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Igus - High Quality
Thread Size:
M10
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
10mm
Technical
d1 10mm
d2 29mm
d3 M10
C1 7mm
B 9mm
h 47.5mm
l1 27mm
l2 62mm
Max pivot angle 24°
Max static tensile strength (short term) 2600 N
Max static tensile strength (long term) 1300 N
Max radial load (short term) 250 N
Max radial load (long term) 125 N
Min thread depth 19mm
Max torque outside thread 5 Nm
Max torque through ball 14 Nm
Weight 8.4 g
