SKU: EARM-30

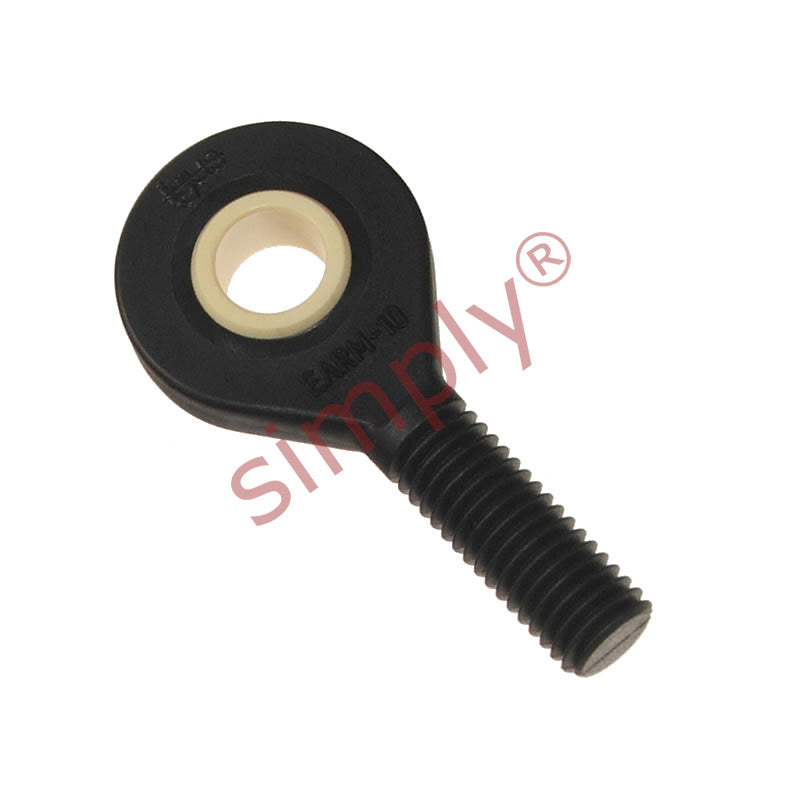

igubal EARM30 Right Hand Male Plastic Rod End 30mm Bore M30x2 Thread - Allow 2-3 Days
igubal EARM30 Right Hand Male Plastic Rod End 30mm Bore M30x2 Thread - Allow 2-3 Days
Regular price
$42.51
ex VAT
Regular price
Sale price
$42.51
ex VAT
In stock
Price Break
4+
$28.47
9+
$26.87
19+
$26.55
29+
$26.23
39+
$25.91
49+
$25.59
59+
$23.99
69+
$23.67
79+
$23.35
89+
$23.03
99+
$22.39
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M30x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 30mm

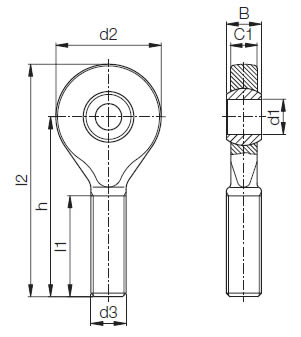

Technical
Technical
| d1 | 30mm |
|---|---|
| d2 | 73mm |
| d3 | M30x2 |
| C1 | 19mm |
| B | 22mm |
| h | 113mm |
| l1 | 65mm |
| l2 | 149.5mm |
| Max pivot angle | 13° |
| Max static tensile strength (short term) | 7000 N |
| Max static tensile strength (long term) | 3500 N |
| Max radial load (short term) | 2000 N |
| Max radial load (long term) | 1000 N |
| Min thread depth | 46mm |
| Max torque outside thread | 85 Nm |
| Max torque through ball | 70 Nm |
| Weight | 156.4 g |
