SKU: EE130900D/131400/Y5S-131400-TIM

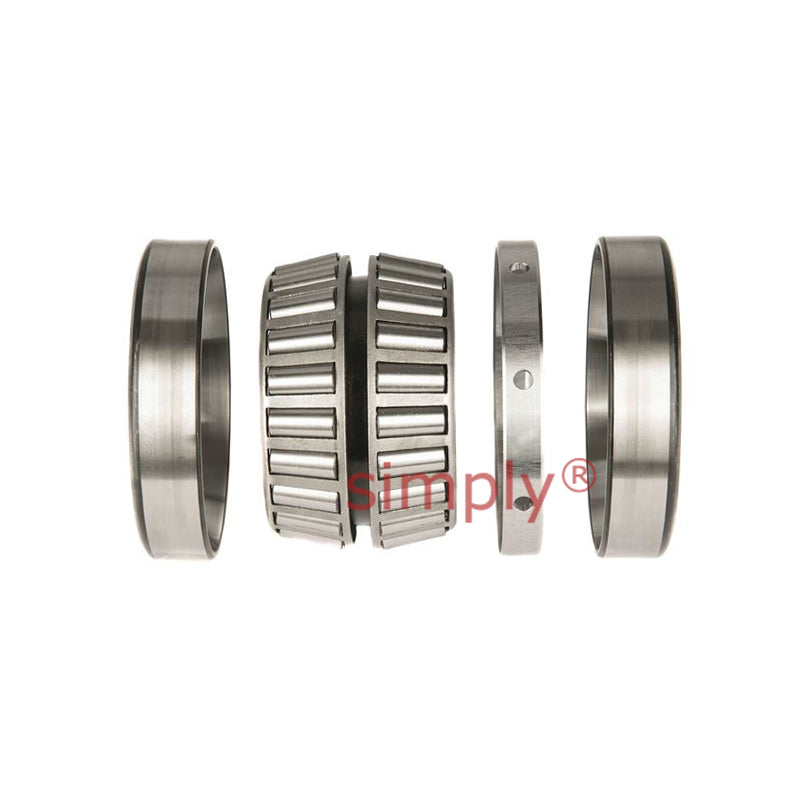

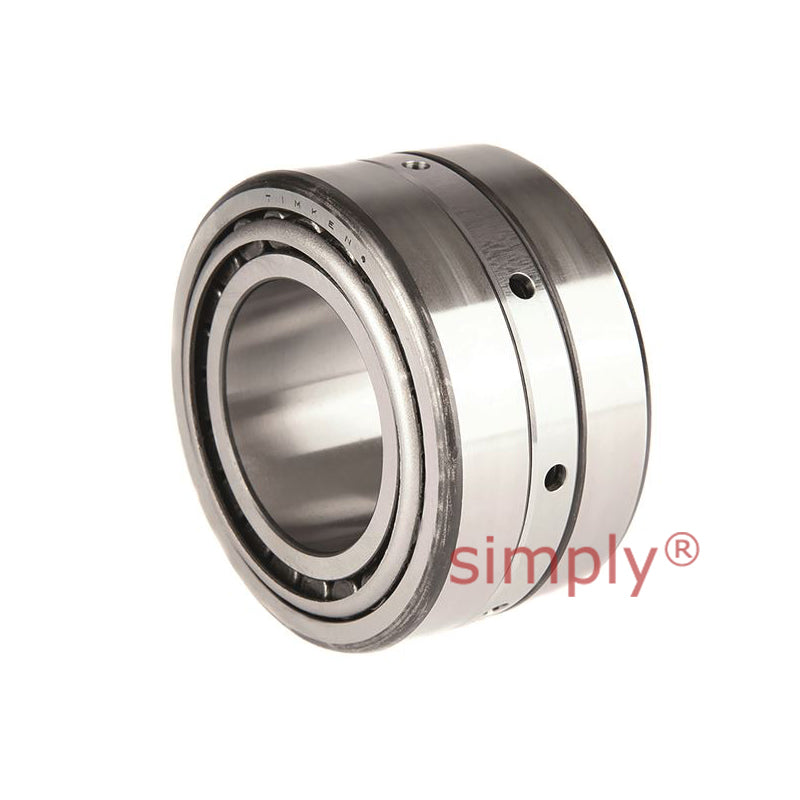

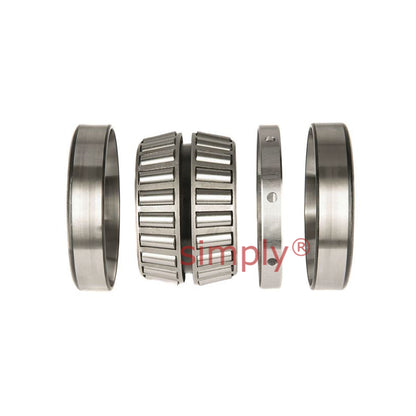

Timken EE130900D/131400/Y5S-131400 TDI Double Inner Race Taper Roller Bearing 9x14x4.75x4.75 inch
Timken EE130900D/131400/Y5S-131400 TDI Double Inner Race Taper Roller Bearing 9x14x4.75x4.75 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 228.6mm = 9 inch
- Outside Diameter:
- 355.6mm = 14 inch
- Width:
- 120.65mm = 4.75 (4-3/4) inch
Technical
Technical
| d | 228.6mm = 9 inch |
|---|---|
| D | 355.6mm = 14 inch |
| T | 120.65mm = 4.75 inch |
| C | 120.65mm = 4.75 inch |
| Dynamic (1) C1 | 1360000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.04 |
| Factors (5) Y2 | 3.04 |
| Dynamic (2) C90 | 202000N |
| Dynamic (2) Ca90 | 114000N |
| Dynamic (2) C90(2) | 352000N |
| Factors (5) K | 1.77 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 247mm = 9.72 inch |
| Housing max shaft fillet radius r (3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Db | 329mm = 12.95 inch |
| G1 | 1160 |
| G2 | 168 |
| Cg | 0.1358 |
