SKU: EE134102D/134143/Y1S-134143-TIM

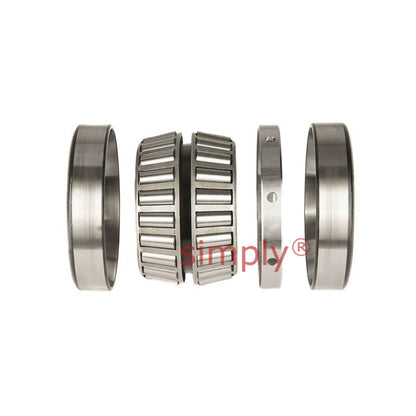

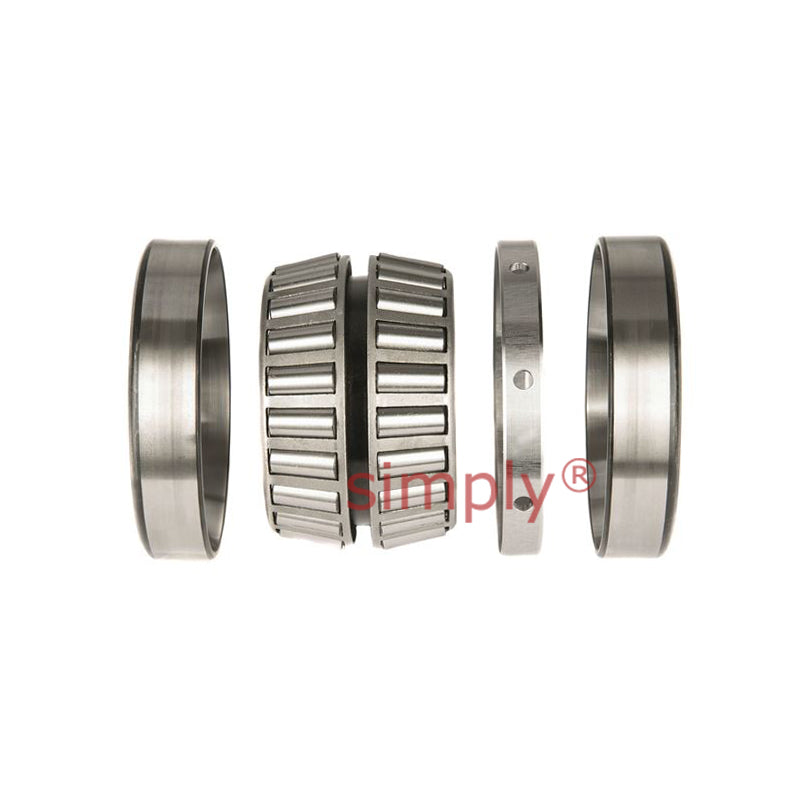

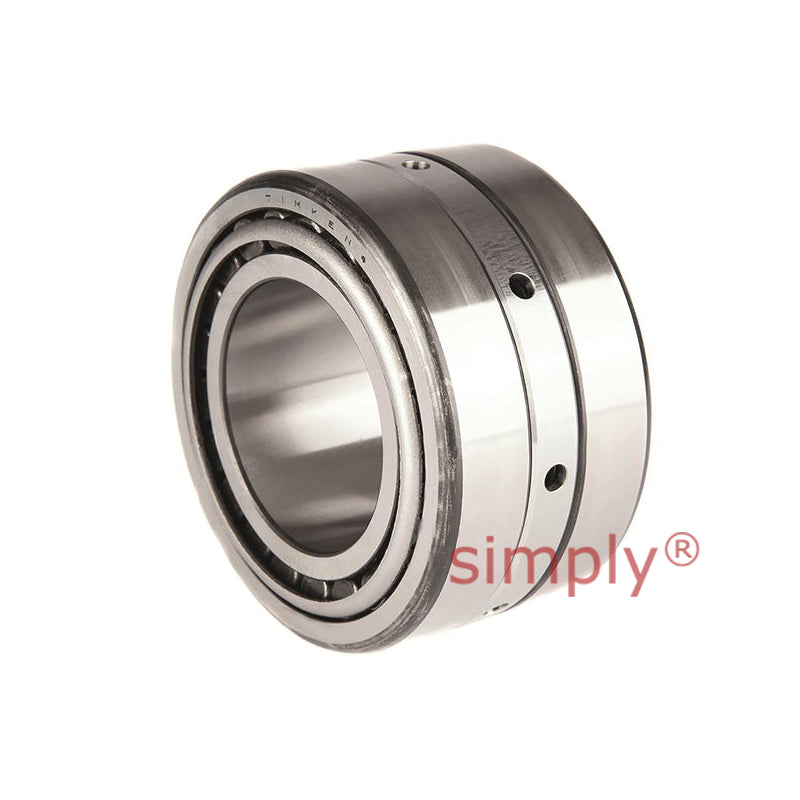

Timken EE134102D/134143/Y1S-134143 TDI Double Inner Race Taper Roller Bearing 10.25x14.375x4.25x4.25 inch
Timken EE134102D/134143/Y1S-134143 TDI Double Inner Race Taper Roller Bearing 10.25x14.375x4.25x4.25 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 260.35mm = 10.25 (10-1/4) inch
- Outside Diameter:
- 365.13mm = 14.375 (14-3/8) inch
- Width:
- 107.95mm = 4.25 (4-1/4) inch
Technical
Technical
| d | 260.35mm = 10.25 inch |
|---|---|
| D | 365.125mm = 14.375 inch |
| T | 107.95mm = 4.25 inch |
| C | 107.95mm = 4.25 inch |
| Dynamic (1) C1 | 1160000N |
| Factors (5) e | 0.37 |
| Factors (5) Y1 | 1.8 |
| Factors (5) Y2 | 2.69 |
| Dynamic (2) C90 | 173000N |
| Dynamic (2) Ca90 | 111000N |
| Dynamic (2) C90(2) | 301000N |
| Factors (5) K | 1.56 |
| Shaft max shaft fillet radius R (3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 280mm = 11.02 inch |
| Housing max shaft fillet radius r (3) | 6.4mm = 0.25 inch |
| Housing backing shoulder diameter Db | 339mm = 13.35 inch |
| G1 | 1330 |
| G2 | 187 |
| Cg | 0.1474 |
