SKU: EF06-20-502-DURB

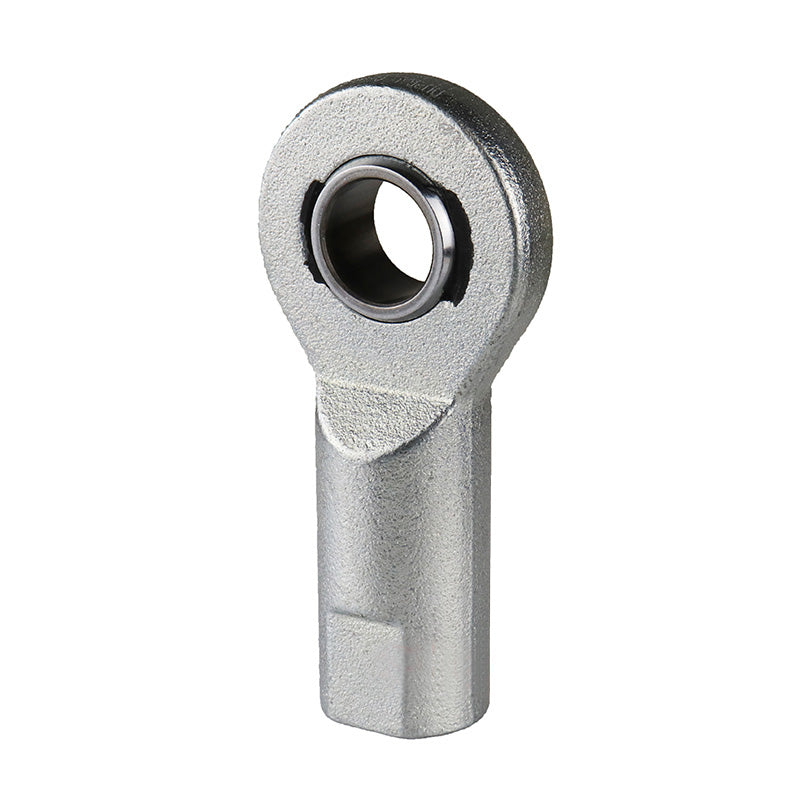

Durbal EF06-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M6 Thread

Name: Durbal EF06-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M6 Thread
Brand: Durbal
SKU: EF06-20-502-DURB
Price: 23.60 USD
Availability: InStock

$23.60 ex VAT

Sale Sold out

In stock

Price Break

10+ $15.81

19+ $14.92

29+ $14.74

39+ $14.56

49+ $14.39

74+ $14.21

99+ $13.32

199+ $13.14

249+ $12.96

499+ $12.79

999+ $12.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M6
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 6mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	6mm
G (Thread)	M6mm
B	6mm
C1	4mm
h1	30mm
d1	8mm
d2	20mm
d3	10mm
dk	10mm
l3	12mm
l4	40mm
l5	8.5mm
l7	11mm
W	9mm
tilt angle α	13 deg
weight	0.017kg
basic load rating dyn C	2.5 kN
basic load rating stat Co	10.6 kN
radial clearance CN	0-10 µm
