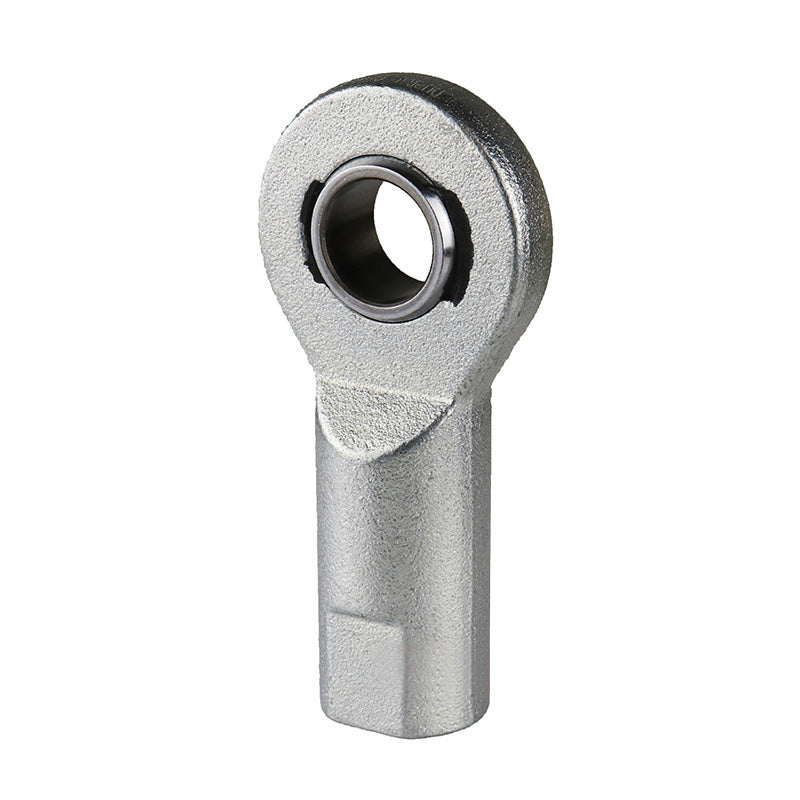

• Durbal EF08-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M8 Thread
  • Durbal
1 2

SKU: EF08-20-502-DURB

Durbal EF08-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M8 Thread

Durbal EF08-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M8 Thread
$26.97 ex VAT
$26.97 ex VAT
Sale Sold out

In stock

Price Break
10+ $18.07
19+ $17.05
29+ $16.85
39+ $16.65
49+ $16.44
74+ $16.24
99+ $15.23
199+ $15.02
249+ $14.82
499+ $14.62
999+ $14.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M8
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
8mm
Material:
PTFE Lined
Technical
Thread Direction -502 (Left)
d 8mm
G (Thread) M8mm
B 8mm
C1 5mm
h1 36mm
d1 10mm
d2 23mm
d3 13mm
dk 13mm
l3 16mm
l4 47.5mm
l5 10.5mm
l7 12mm
W 11mm
tilt angle α 15 deg
weight 0.031kg
basic load rating dyn C 4.2 kN
basic load rating stat Co 13.1 kN
radial clearance CN 0-10 µm
