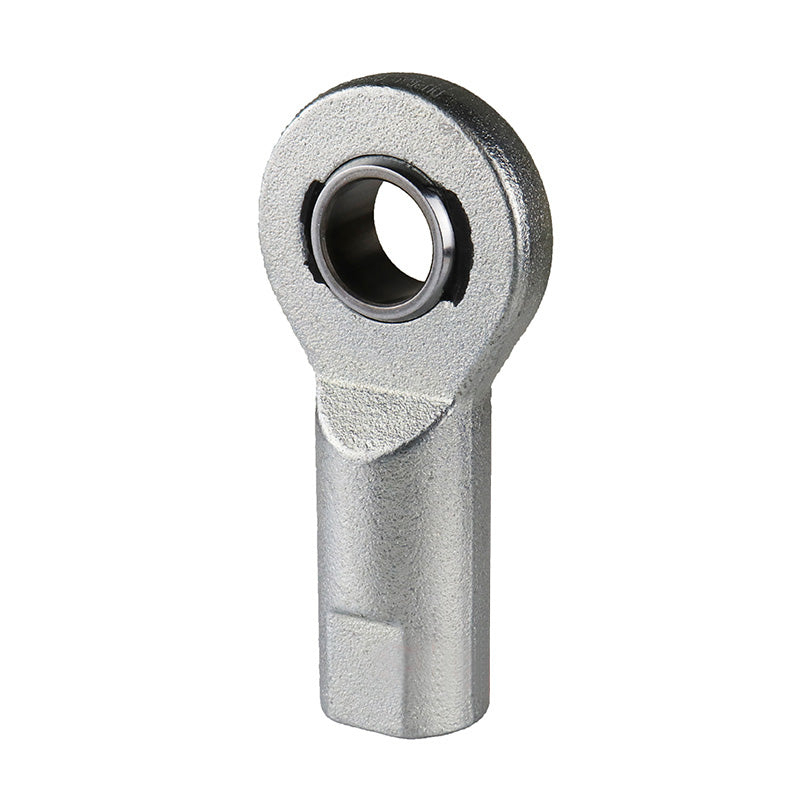

• Durbal EF12-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M12 Thread
  • Durbal
1 2

SKU: EF12-20-501-DURB

Durbal EF12-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M12 Thread

Durbal EF12-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M12 Thread
$40.21 ex VAT
$40.21 ex VAT
Sale Sold out

Equivalent to: GIR12UK SI12C

In stock

Price Break
10+ $26.93
19+ $25.42
29+ $25.12
39+ $24.81
49+ $24.51
74+ $24.21
99+ $22.70
199+ $22.39
249+ $22.09
499+ $21.79
999+ $21.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M12
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
12mm
Material:
PTFE Lined
Technical
Thread Direction -501 (Right)
d 12mm
G (Thread) M12mm
B 10mm
C1 7mm
h1 50mm
d1 15mm
d2 32mm
d3 19mm
dk 18mm
l3 22mm
l4 66mm
l5 12.5mm
l7 15mm
W 17mm
tilt angle α 10.5 deg
weight 0.086kg
basic load rating dyn C 9.2 kN
basic load rating stat Co 28 kN
radial clearance CN 0-10 µm
