SKU: EF12-20-502-DURB

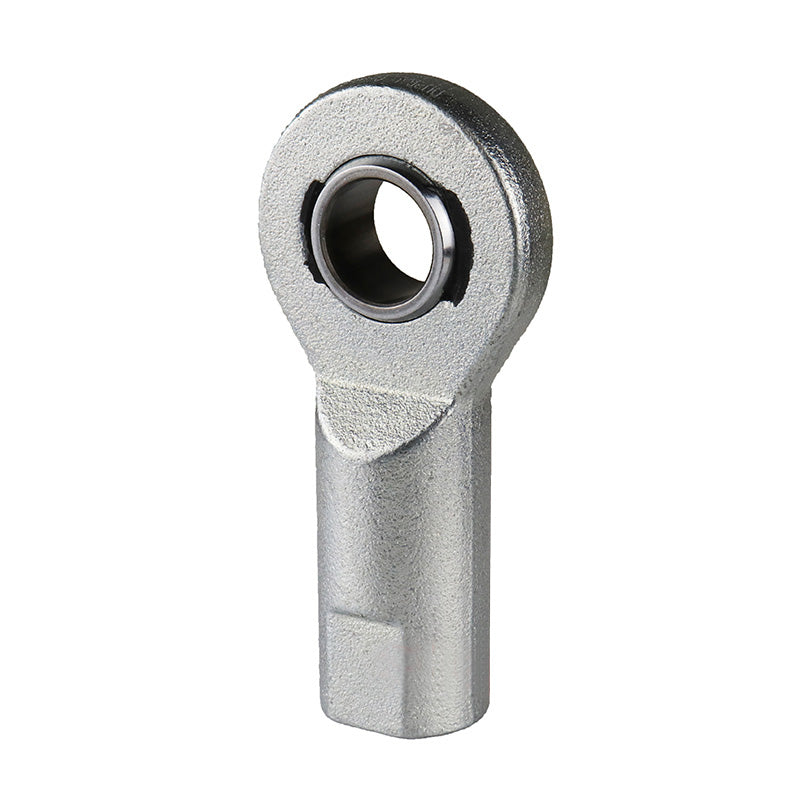

Durbal EF12-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M12 Thread

Name: Durbal EF12-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M12 Thread
Brand: Durbal
SKU: EF12-20-502-DURB
Price: 32.25 USD
Availability: InStock

$32.25 ex VAT

Sale Sold out

In stock

Price Break

10+ $21.60

19+ $20.39

29+ $20.14

39+ $19.90

49+ $19.66

74+ $19.42

99+ $18.20

199+ $17.96

249+ $17.72

499+ $17.47

999+ $16.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M12
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 12mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	12mm
G (Thread)	M12mm
B	10mm
C1	7mm
h1	50mm
d1	15mm
d2	32mm
d3	19mm
dk	18mm
l3	22mm
l4	66mm
l5	12.5mm
l7	15mm
W	17mm
tilt angle α	10.5 deg
weight	0.086kg
basic load rating dyn C	9.2 kN
basic load rating stat Co	28 kN
radial clearance CN	0-10 µm
