SKU: EF12-60-502-DURB

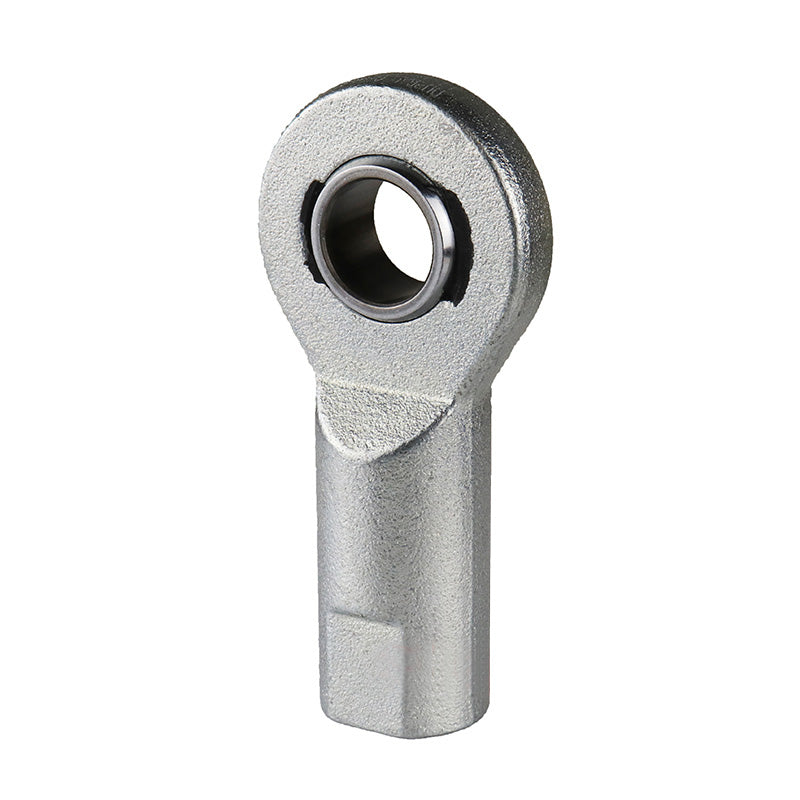

Durbal EF12-60-502 Maintenance Free Left Hand Metric Stainless Steel / PTFE Lined Female Rod End M12 Thread

Name: Durbal EF12-60-502 Maintenance Free Left Hand Metric Stainless Steel / PTFE Lined Female Rod End M12 Thread
Brand: Durbal
SKU: EF12-60-502-DURB
Price: 73.88 USD
Availability: InStock

$73.88 ex VAT

Sale Sold out

In stock

Price Break

10+ $49.48

19+ $46.70

29+ $46.15

39+ $45.59

49+ $45.04

74+ $44.48

99+ $41.70

199+ $41.14

249+ $40.59

499+ $40.03

999+ $38.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M12
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 12mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	12mm
G (Thread)	M12mm
B	10mm
C1	7mm
h1	50mm
d1	15mm
d2	32mm
d3	19mm
dk	18mm
l3	22mm
l4	66mm
l5	12.5mm
l7	15mm
W	17mm
tilt angle α	10.5 deg
weight	0.086kg
basic load rating dyn C	9.2 kN
basic load rating stat Co	12.6 kN
radial clearance CN	0-10 µm
