SKU: EF15-20-502-DURB

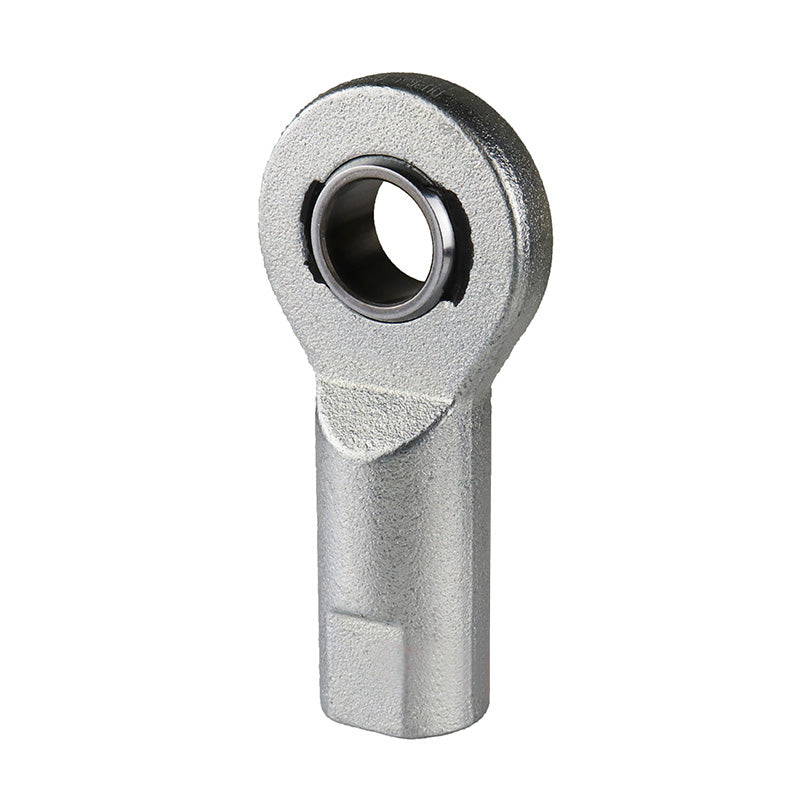

Durbal EF15-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M14 Thread

Name: Durbal EF15-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M14 Thread
Brand: Durbal
SKU: EF15-20-502-DURB
Price: 44.56 USD
Availability: InStock

$44.56 ex VAT

Sale Sold out

In stock

Price Break

10+ $29.85

19+ $28.17

29+ $27.84

39+ $27.50

49+ $27.17

74+ $26.83

99+ $25.16

199+ $24.82

249+ $24.48

499+ $24.15

999+ $23.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M14
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 15mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	15mm
G (Thread)	M14mm
B	12mm
C1	9mm
h1	61mm
d1	18mm
d2	38mm
d3	22mm
dk	22mm
l3	25mm
l4	80mm
l5	12.5mm
l7	18mm
W	19mm
tilt angle α	8.5 deg
weight	0.142kg
basic load rating dyn C	13.4 kN
basic load rating stat Co	41 kN
radial clearance CN	0-10 µm
