SKU: EF17-20-502-DURB

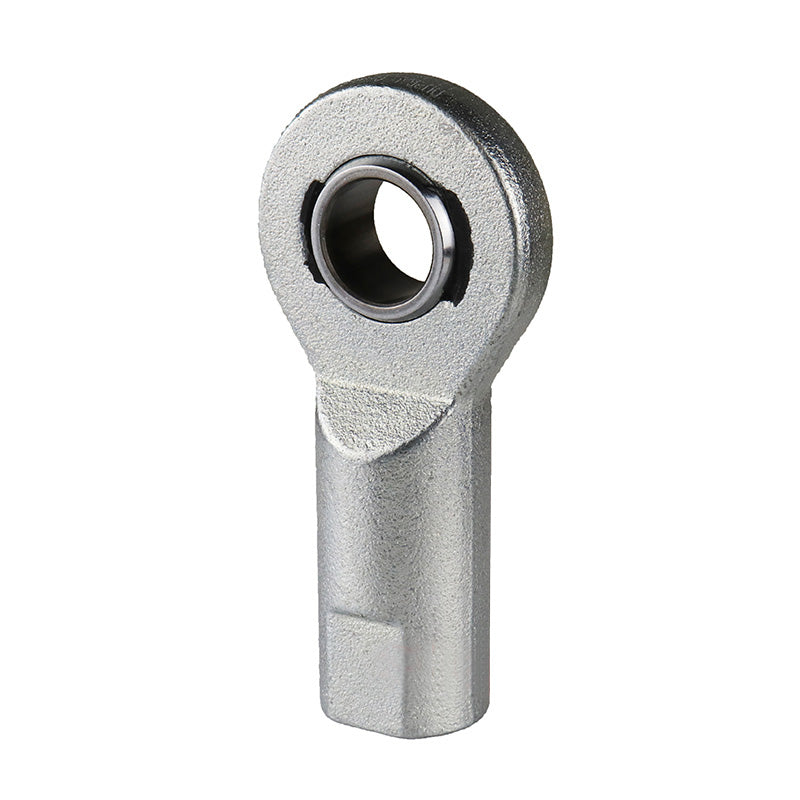

Durbal EF17-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M16 Thread

Name: Durbal EF17-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M16 Thread
Brand: Durbal
SKU: EF17-20-502-DURB
Price: 52.91 USD
Availability: InStock

$52.91 ex VAT

Sale Sold out

In stock

Price Break

10+ $35.44

19+ $33.45

29+ $33.05

39+ $32.65

49+ $32.25

74+ $31.86

99+ $29.87

199+ $29.47

249+ $29.07

499+ $28.67

999+ $27.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M16
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 17mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	17mm
G (Thread)	M16mm
B	14mm
C1	10mm
h1	67mm
d1	20mm
d2	44mm
d3	25mm
dk	25mm
l3	28mm
l4	89mm
l5	16.5mm
l7	20mm
W	22mm
tilt angle α	10 deg
weight	0.208kg
basic load rating dyn C	19.2 kN
basic load rating stat Co	57.9 kN
radial clearance CN	0-10 µm
