SKU: EF20-20-501-DURB

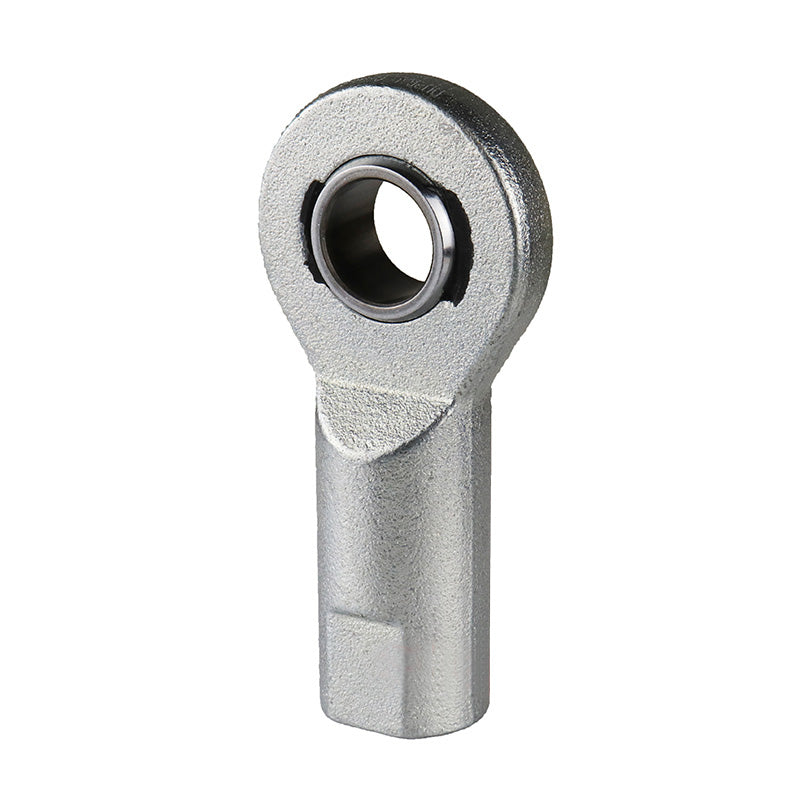

Durbal EF20-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M20x1.5 Thread

Name: Durbal EF20-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M20x1.5 Thread
Brand: Durbal
SKU: EF20-20-501-DURB
Price: 60.68 USD
Availability: InStock

$60.68 ex VAT

Sale Sold out

Equivalent to: GIR20UK SI20C

In stock

Price Break

10+ $40.65

19+ $38.36

29+ $37.91

39+ $37.45

49+ $36.99

74+ $36.54

99+ $34.25

199+ $33.80

249+ $33.34

499+ $32.88

999+ $31.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M20x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 20mm
Material:: PTFE Lined

Technical

Thread Direction	-501 (Right)
d	20mm
G (Thread)	M20x1.5mm
B	16mm
C1	12mm
h1	77mm
d1	24mm
d2	51mm
d3	28mm
dk	29mm
l3	33mm
l4	102.5mm
l5	17.5mm
l7	23mm
W	24mm
tilt angle α	9 deg
weight	0.29kg
basic load rating dyn C	25.2 kN
basic load rating stat Co	76.7 kN
radial clearance CN	0-10 µm
