SKU: EF25-20-501-DURB

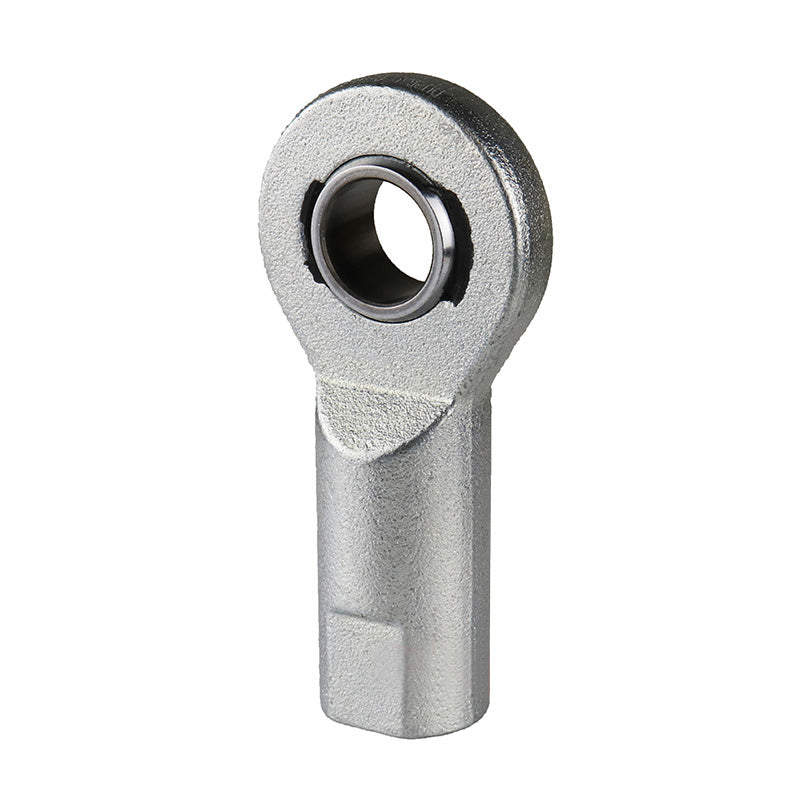

Durbal EF25-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M24x2 Thread

Name: Durbal EF25-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M24x2 Thread
Brand: Durbal
SKU: EF25-20-501-DURB
Price: 84.65 USD
Availability: InStock

$84.65 ex VAT

Sale Sold out

Equivalent to: GIR25UK SI25C

In stock

Price Break

10+ $56.70

19+ $53.52

29+ $52.88

39+ $52.24

49+ $51.61

74+ $50.97

99+ $47.78

199+ $47.15

249+ $46.51

499+ $45.87

999+ $44.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M24x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 25mm
Material:: PTFE Lined

Technical

Thread Direction	-501 (Right)
d	25mm
G (Thread)	M24x2mm
B	20mm
C1	16mm
h1	94mm
d1	29mm
d2	62mm
d3	35mm
dk	35.5mm
l3	42mm
l4	125mm
l5	19.5mm
l7	30mm
W	30mm
tilt angle α	7.5 deg
weight	0.573kg
basic load rating dyn C	42.4 kN
basic load rating stat Co	119.1 kN
radial clearance CN	0-10 µm
