SKU: EF30-20-502-DURB

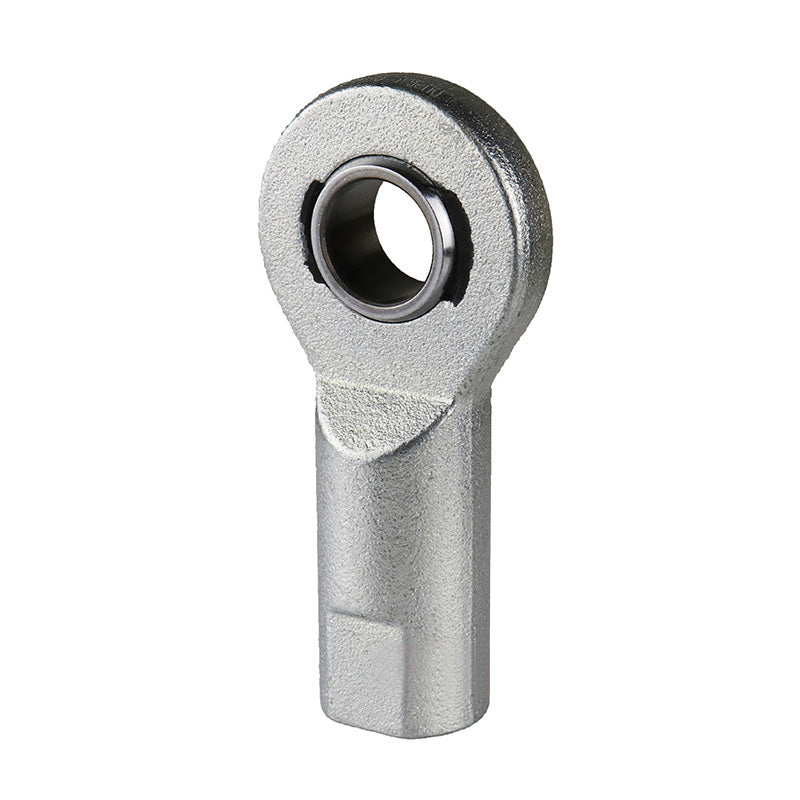

Durbal EF30-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M30x2 Thread

Name: Durbal EF30-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M30x2 Thread
Brand: Durbal
SKU: EF30-20-502-DURB
Price: 106.77 USD
Availability: InStock

$106.77 ex VAT

Sale Sold out

In stock

Price Break

10+ $71.52

19+ $67.50

29+ $66.70

39+ $65.90

49+ $65.09

74+ $64.29

99+ $60.27

199+ $59.47

249+ $58.66

499+ $57.86

999+ $56.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M30x2
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 30mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	30mm
G (Thread)	M30x2mm
B	22mm
C1	18mm
h1	110mm
d1	34mm
d2	70mm
d3	42mm
dk	40.7mm
l3	51mm
l4	145mm
l5	19.5mm
l7	32mm
W	36mm
tilt angle α	6 deg
weight	0.908kg
basic load rating dyn C	54 kN
basic load rating stat Co	141.8 kN
radial clearance CN	0-10 µm
