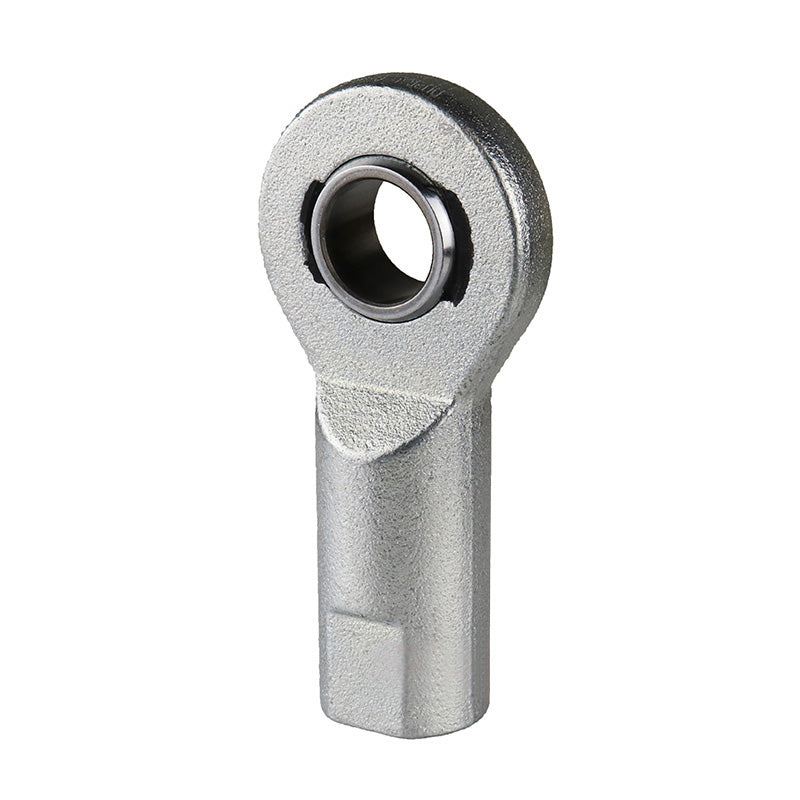

Durbal EF30-60-502 Maintenance Free Left Hand Metric Stainless Steel / PTFE Lined Female Rod End M30x2 Thread

DURBAL Heavy-Duty Stainless Steel Female Rod Ends with Integral Spherical-Plain Bearing: Threaded female rod end consisting of a forged, hardened and electropolished stainless steel housing with a polyamide-PTFE-fibreglass-compound race and a stainless steel joint ball bearing. DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign particles. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. Made of forged stainless steel, extremely high loads resistant and surface electropolished which ensures you a very high corrosion resistance. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -30 deg C to +60 deg C.
Benefits: Radial clearance 0 – 10 µm, Suitable for use with impact loads, For use with small swivelling movements and at low speeds, Free from non-ferrous metals.

Brand / Quality:

Durbal - High Quality

Thread Size:

M30x2

Thread M / F:

Female

Thread Direction:

Left Hand

Inside Diameter:

30mm

Material:

PTFE Lined
