SKU: EF35-20-501-DURB

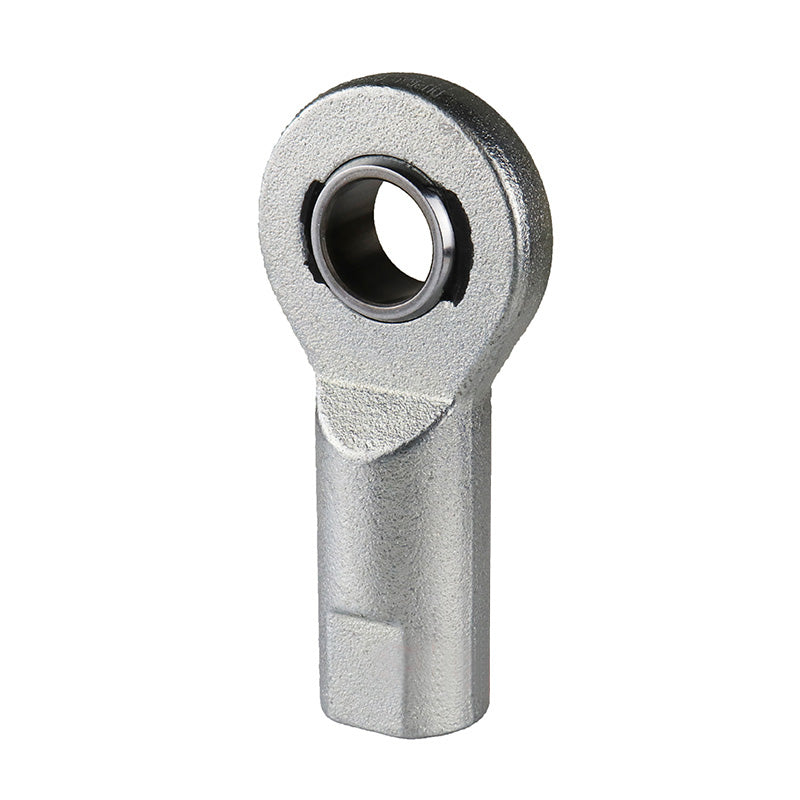

Durbal EF35-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M36x3 Thread

Name: Durbal EF35-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Female Rod End M36x3 Thread
Brand: Durbal
SKU: EF35-20-501-DURB
Price: 173.69 USD
Availability: InStock

$173.69 ex VAT

Sale Sold out

Equivalent to: GIR35UK SI35C

In stock

Price Break

10+ $116.34

19+ $109.80

29+ $108.50

39+ $107.19

49+ $105.88

74+ $104.58

99+ $98.04

199+ $96.73

249+ $95.43

499+ $94.12

999+ $91.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M36x3
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 35mm
Material:: PTFE Lined

Technical

Thread Direction	-501 (Right)
d	35mm
G (Thread)	M36x3mm
B	25mm
C1	20mm
h1	125mm
d1	39mm
d2	82mm
d3	51mm
dk	47mm
l3	61mm
l4	166mm
l5	24.5mm
l7	38mm
W	41mm
tilt angle α	6.5 deg
weight	1.23kg
basic load rating dyn C	70.4 kN
basic load rating stat Co	180.8 kN
radial clearance CN	0-10 µm
