SKU: EF40-20-502-DURB

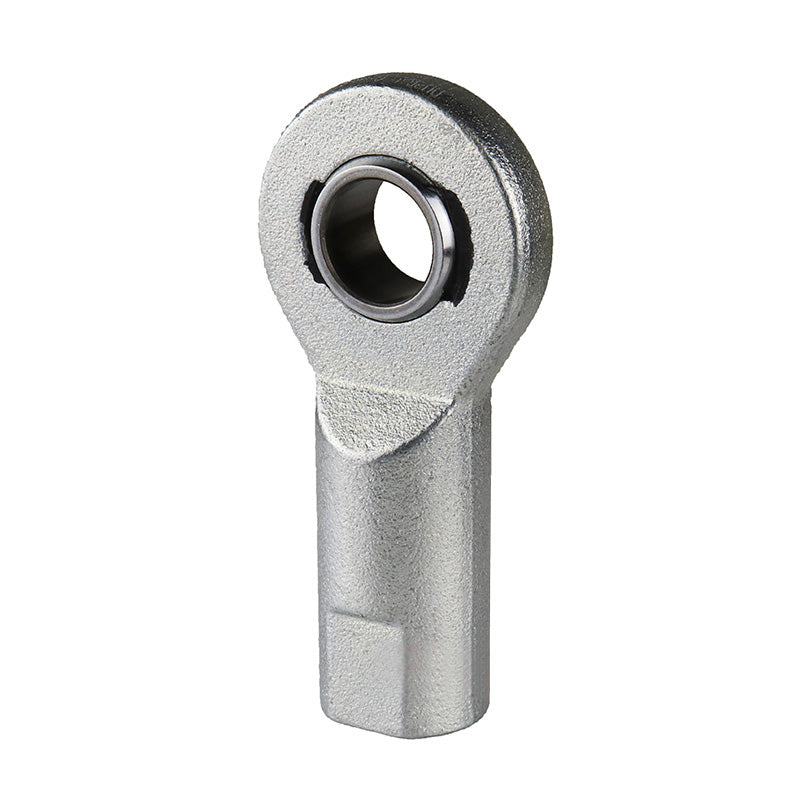

Durbal EF40-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M42x3 Thread

Name: Durbal EF40-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M42x3 Thread
Brand: Durbal
SKU: EF40-20-502-DURB
Price: 320.92 USD
Availability: InStock

$320.92 ex VAT

Sale Sold out

In stock

Price Break

10+ $214.96

19+ $202.89

29+ $200.47

39+ $198.05

49+ $195.64

74+ $193.22

99+ $181.15

199+ $178.73

249+ $176.32

499+ $173.90

999+ $169.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M42x3
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 40mm
Material:: PTFE Lined

Technical

Thread Direction	-502 (Left)
d	40mm
G (Thread)	M42x3mm
B	28mm
C1	22mm
h1	145mm
d1	45mm
d2	92mm
d3	60mm
dk	53mm
l3	71mm
l4	191mm
l5	24.5mm
l7	42mm
W	50mm
tilt angle α	7 deg
weight	2.075kg
basic load rating dyn C	86 kN
basic load rating stat Co	222.6 kN
radial clearance CN	0-10 µm
