SKU: EFN50-20-501-DURB

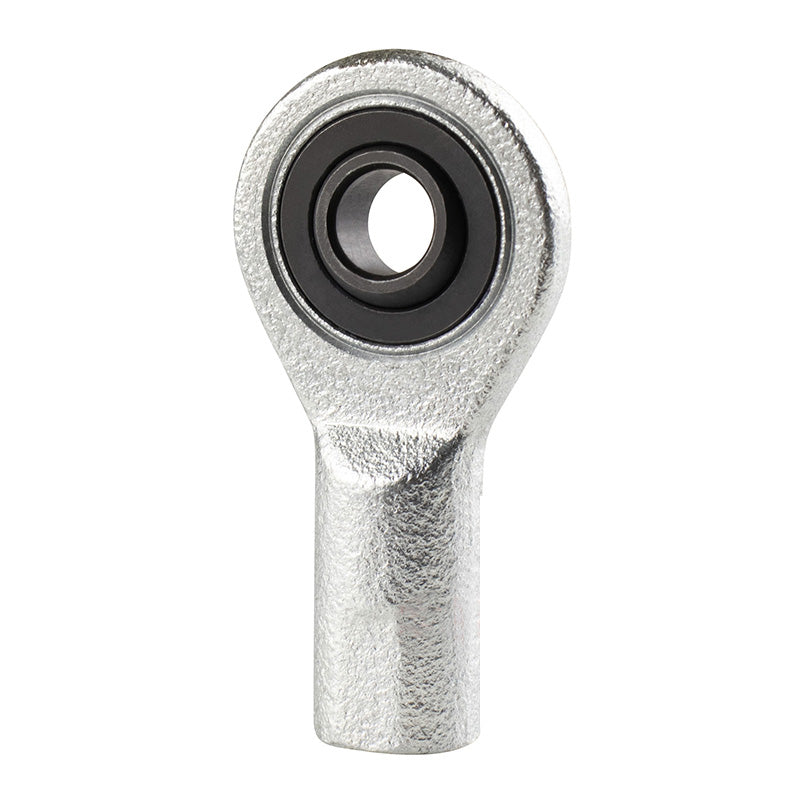

Durbal EFN50-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M52x3 Thread

Name: Durbal EFN50-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M52x3 Thread
Brand: Durbal
SKU: EFN50-20-501-DURB
Price: 395.30 USD
Availability: InStock

$395.30 ex VAT

Sale Sold out

Equivalent to: GIR50DO SI50ES

In stock

Price Break

10+ $264.78

19+ $249.91

29+ $246.93

39+ $243.96

49+ $240.98

74+ $238.01

99+ $223.13

199+ $220.16

249+ $217.18

499+ $214.21

999+ $208.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

DESC_EFNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually

Brand / Quality:: Durbal - High Quality
Thread Size:: M52x3
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 50mm

Technical

Thread Direction	-501 (Right)
d	50mm
G (Thread)	M52x3mm
B	35mm
C1	28mm
h1	195mm
d1	55mm
d2	112mm
d3	72mm
dk	66mm
l3	89mm
l4	251mm
l5	30.5mm
l7	60mm
W	60mm
tilt angle α	6 deg
weight	3.5kg
basic load rating dyn C	132 kN
basic load rating stat Co	290 kN
radial clearance CN	40-120 µm
