SKU: EGLM-08

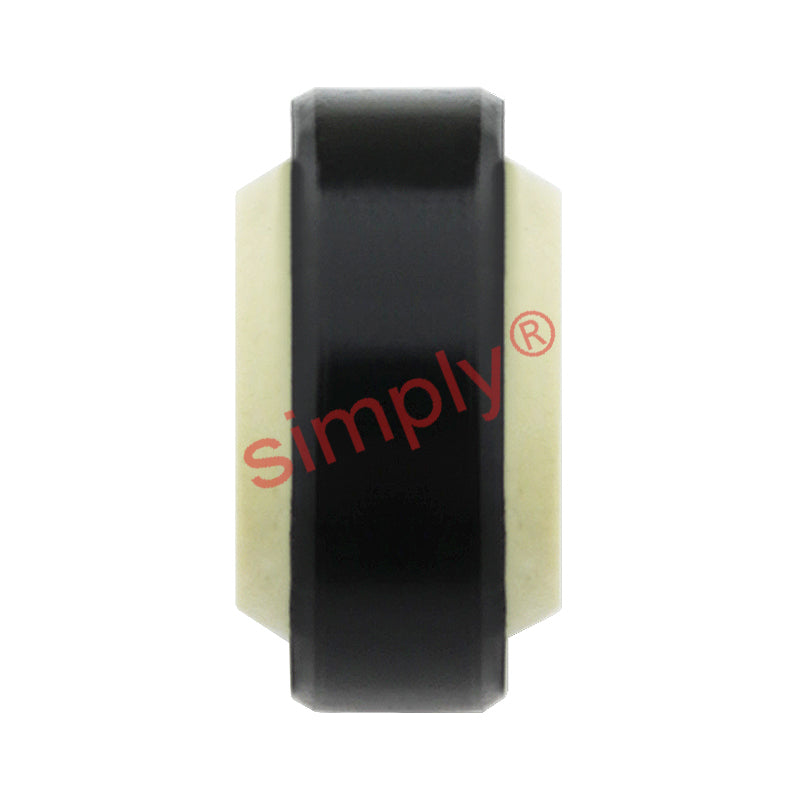

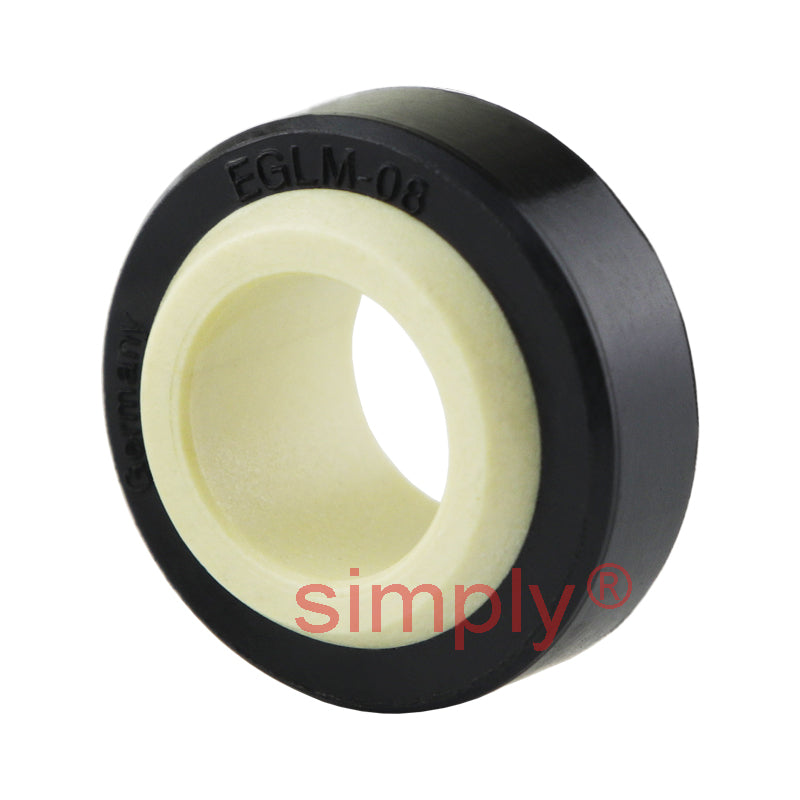

Igus EGLM08 Spherical Plain Bearing 8x16x8mm
- Regular price
- $20.41 ex VAT
- Sale price
- $20.41
- Regular price
-
Not in stock
Quantity Price Breaks
5
$18.16
9
$17.14
29
$16.94
49
$16.74
99
$16.53
199
$16.33
299
$15.31
399
$15.10
499
$14.90
749
$14.70
999
$14.29
SKU:
EGLM-08
Igus EGLM08 Spherical Plain Bearing 8x16x8mm
- Regular price
- $20.41 ex VAT
- Sale price
- $20.41
- Regular price
-
Description
EGLM Spherical Plain Bearings: These bearings are commonly used in the food industry, automotive industry, railway technology or plant construction. These bearings are popular due to the following reasons; high axial and radial loads, easy to install, great chemical resistance, cost-effective and the ability to adjust misalignments.
Benefits: Compensation of misalignment and edge loads, corrosion-resistant, suitable for rotating, oscillating and axial movements.

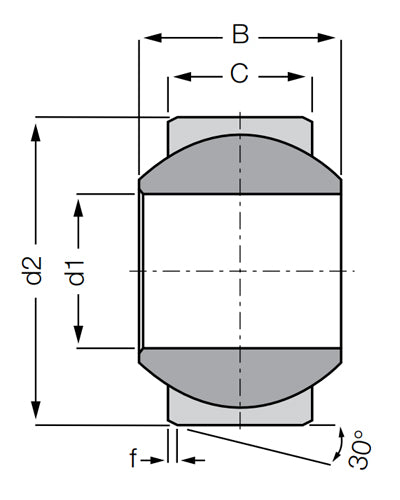

Technical
| d1 | = | 8mm |
| d2 | = | 16mm |
| B | = | 8mm |
| C | = | 5mm |
| f | = | 0.5mm |
| Max Static Compressive Strength (Radial) | = | 303 lbs |
| Max Static Compressive Strength (Axial) | = | 39 lbs |
| Max Torque Through Ball | = | 5.2 ft lbs |
| Max Pivot Angle | = | 24 deg |
| Weight | = | 0.001 kg |
