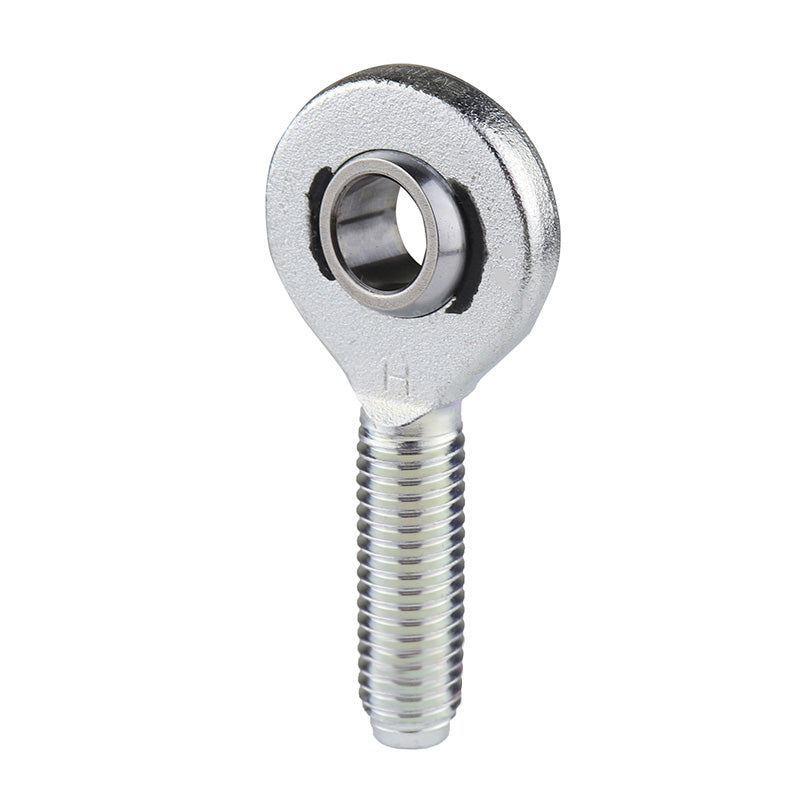

• Durbal EM30-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M30x2 Thread
  • Durbal
1 2

SKU: EM30-20-501-DURB

Durbal EM30-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M30x2 Thread

Durbal EM30-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M30x2 Thread
$106.77 ex VAT
$106.77 ex VAT
Sale Sold out

Equivalent to: GAR30UK SA30C

In stock

Price Break
10+ $71.52
19+ $67.50
29+ $66.70
39+ $65.90
49+ $65.09
74+ $64.29
99+ $60.27
199+ $59.47
249+ $58.66
499+ $57.86
999+ $56.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M30x2
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
30mm
Material:
PTFE Lined
Technical
Thread Direction -501 (Right)
d 30mm
G (Thread) M30x2
B 22mm
C1 18mm
h 110mm
d1 34mm
d2 70mm
dk 40.7mm
l1 66mm
l2 145mm
l7 35mm
tilt angle α 6 deg
weight 0.785kg
basic load rating dyn C 54 kN
basic load rating stat Co 141.8 kN
radial clearance CN 0-10 µm
