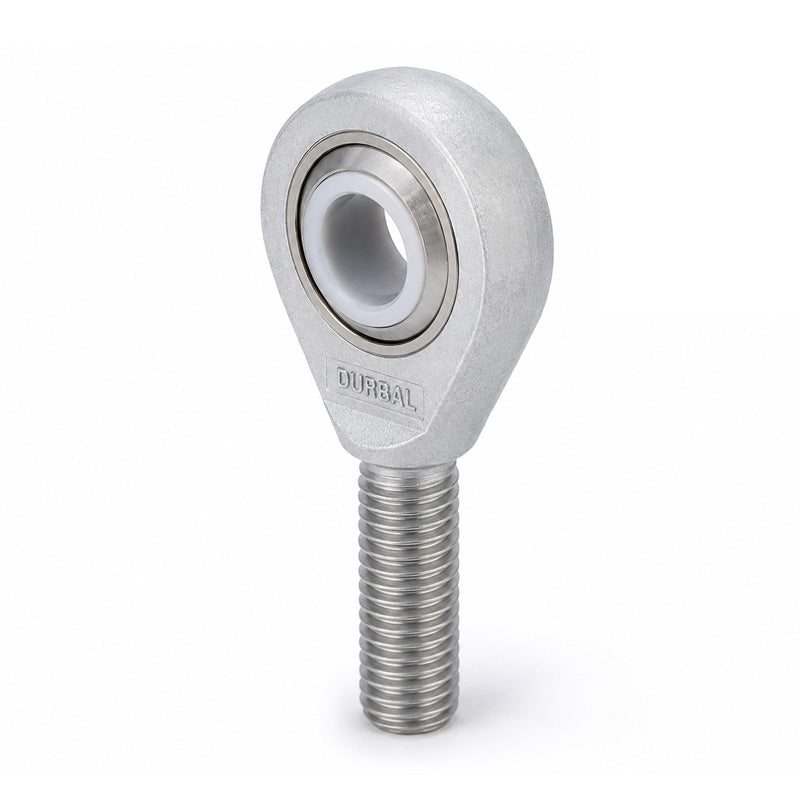

Durbal EMA17-60-502 Maintenance Free Left Hand Metric Aluminium / PTFE Lined Male Rod End M16 Thread

DURBAL Heavy-Duty Aluminium Male Rod Ends with Integral Spherical-Plain Bearing: Threaded male rod ends consisting of a high strength aluminium housing with an anodized silver surface with a polyamide-PTFE-fibreglass-compound race and stainless steel joint ball bearing. Extreme low weight compared to other rod ends made of steel. The aluminium rod ends are insulated, in consequence, do not conduct current and therefore ideal for outdoor applications. DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign particles. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. Joint balls are made of stainless steel, hardened, ground, polished. All housings are made of high-strength aluminium with a very good corrosion resistance, an extremely hard and scratch-resistant surface that is standard anodized silver. Furthermore, all of them show a high mechanical load capacity and approximately have the same load ratings as the steel items of a competitor. Temperature range: -30 deg C to +60 deg C.
Benefits: For use with small swivelling movements and at low speeds, No Clearance: radial clearance 0 – 10 µm, Suitable for use with impact loads

Brand / Quality:

Durbal - High Quality

Thread Size:

M16

Thread M / F:

Male

Thread Direction:

Left Hand

Inside Diameter:

17mm

Material:

PTFE Lined
