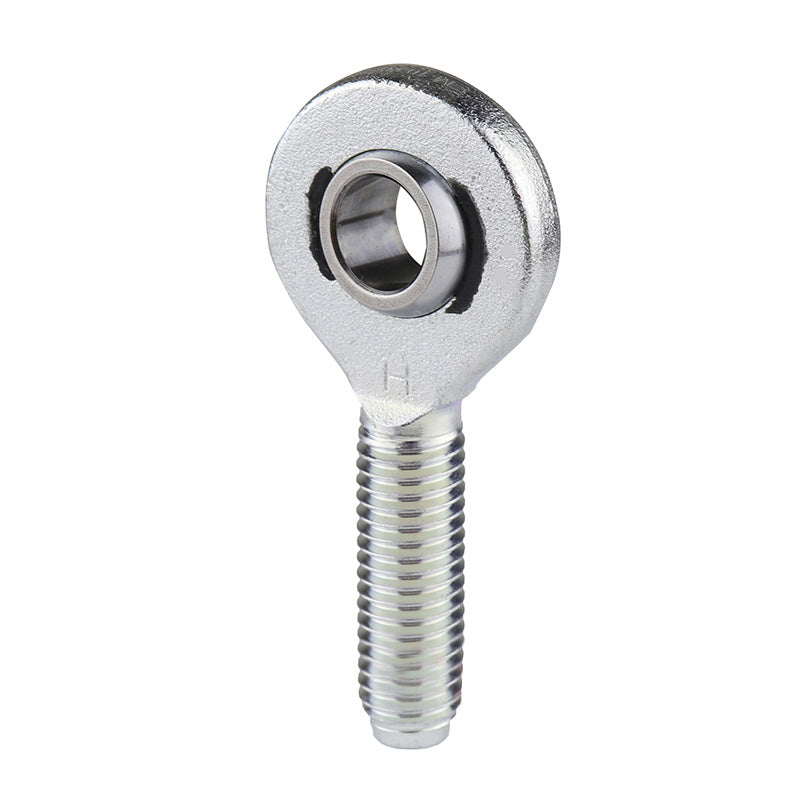

Durbal EMN06-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M6 Thread

Name: Durbal EMN06-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M6 Thread
Brand: Durbal
SKU: EMN06-20-502-DURB
Price: 41.77 USD
Availability: InStock

$41.77 ex VAT

Sale Sold out

In stock

Price Break

10+ $27.98

19+ $26.41

29+ $26.10

39+ $25.78

49+ $25.47

74+ $25.15

99+ $23.58

199+ $23.27

249+ $22.95

499+ $22.64

999+ $22.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

DESC_EMNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually

Brand / Quality:: Durbal - High Quality
Thread Size:: M6
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 6mm

Technical

Thread Direction	-502 (Left)
d	6mm
G (Thread)	M6mm
B	6mm
C1	4mm
h	36mm
d1	8mm
d2	20mm
dk	10mm
l1	22mm
l2	46mm
l7	11mm
tilt angle α	13 deg
weight	0.017kg
basic load rating dyn C	2.5 kN
basic load rating stat Co	8.5 kN
radial clearance CN	32-68 µm
