SKU: EMN10-20-501-DURB

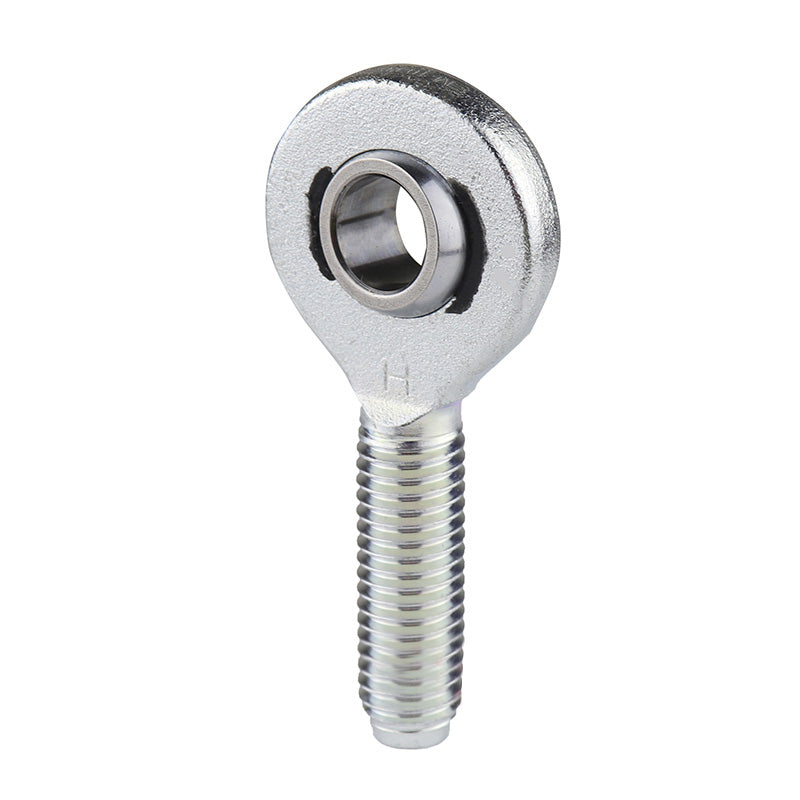

Durbal EMN10-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M10 Thread

Name: Durbal EMN10-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M10 Thread
Brand: Durbal
SKU: EMN10-20-501-DURB
Price: 29.31 USD
Availability: InStock

$29.31 ex VAT

Sale Sold out

Equivalent to: GAR10DO SA10ES

In stock

Price Break

10+ $19.63

19+ $18.53

29+ $18.31

39+ $18.09

49+ $17.87

74+ $17.65

99+ $16.55

199+ $16.32

249+ $16.10

499+ $15.88

999+ $15.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

DESC_EMNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually

Brand / Quality:: Durbal - High Quality
Thread Size:: M10
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 10mm

Technical

Thread Direction	-501 (Right)
d	10mm
G (Thread)	M10mm
B	9mm
C1	6mm
h	48mm
d1	13mm
d2	28mm
dk	16mm
l1	29mm
l2	62mm
l7	15mm
tilt angle α	12 deg
weight	0.051kg
basic load rating dyn C	6.4 kN
basic load rating stat Co	17.8 kN
radial clearance CN	32-68 µm
