SKU: EMN12-20-501-DURB

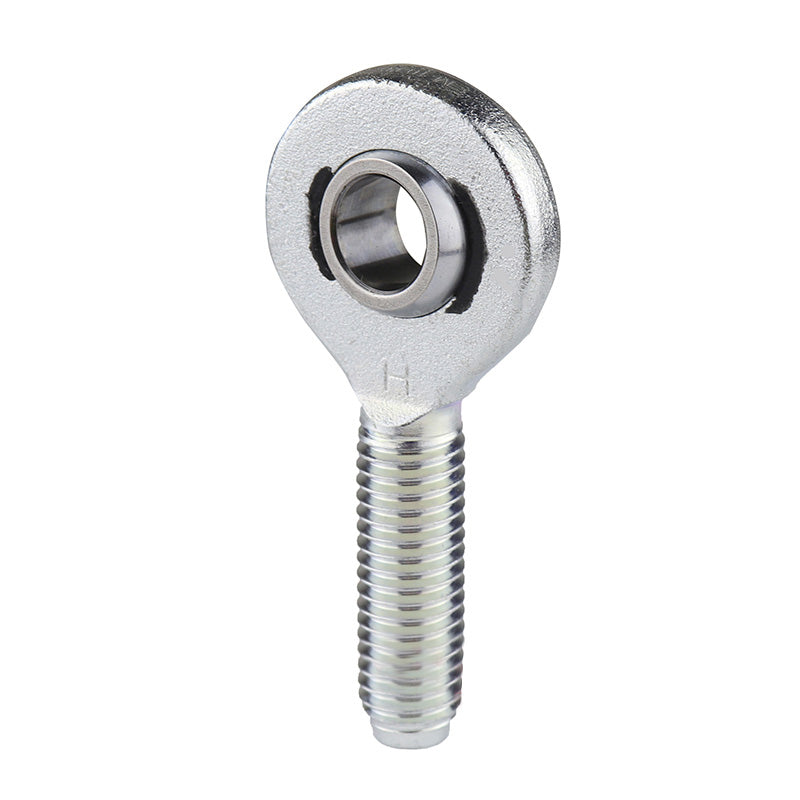

Durbal EMN12-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M12 Thread

Name: Durbal EMN12-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M12 Thread
Brand: Durbal
SKU: EMN12-20-501-DURB
Price: 38.11 USD
Availability: InStock

$38.11 ex VAT

Sale Sold out

Equivalent to: GAR12DO SA12ES

In stock

Price Break

10+ $25.53

19+ $24.09

29+ $23.80

39+ $23.52

49+ $23.23

74+ $22.94

99+ $21.51

199+ $21.22

249+ $20.94

499+ $20.65

999+ $20.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

DESC_EMNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually

Brand / Quality:: Durbal - High Quality
Thread Size:: M12
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 12mm

Technical

Thread Direction	-501 (Right)
d	12mm
G (Thread)	M12mm
B	10mm
C1	7mm
h	54mm
d1	15mm
d2	32mm
dk	18mm
l1	33mm
l2	70mm
l7	15mm
tilt angle α	11 deg
weight	0.086kg
basic load rating dyn C	9.2 kN
basic load rating stat Co	24.5 kN
radial clearance CN	32-68 µm
