SKU: EMN15-20-501-DURB

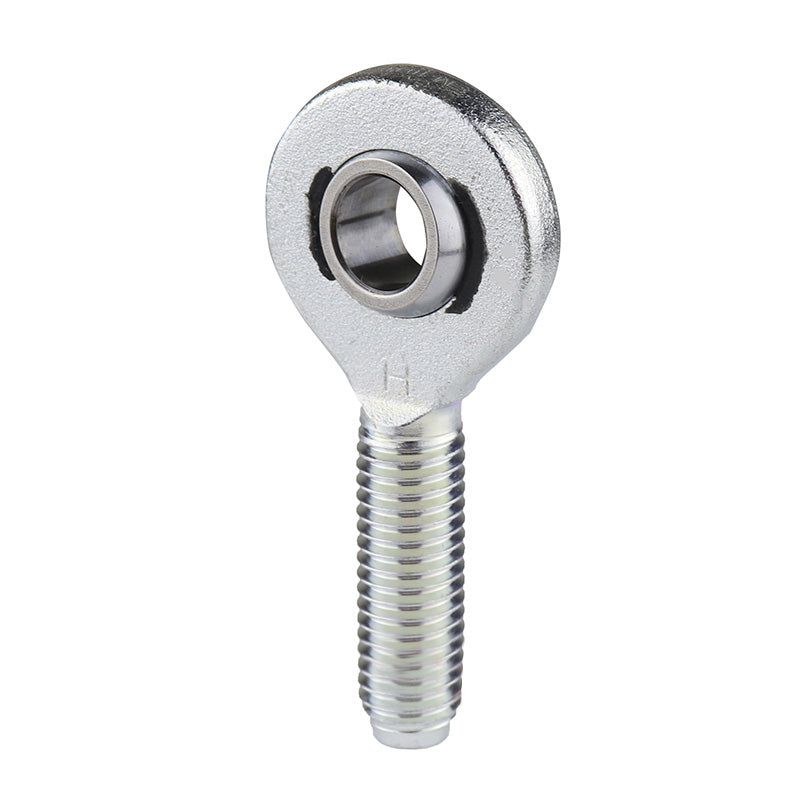

Durbal EMN15-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M14 Thread
Durbal EMN15-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M14 Thread
Regular price
$44.56
ex VAT
Regular price
Sale price
$44.56
ex VAT
Equivalent to: GAR15DO SA15ES
In stock
Price Break
10+
$29.85
19+
$28.17
29+
$27.84
39+
$27.50
49+
$27.17
74+
$26.83
99+
$25.16
199+
$24.82
249+
$24.48
499+
$24.15
999+
$23.48
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DESC_EMNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M14
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 15mm
Technical
Technical
| Thread Direction | -501 (Right) |
|---|---|
| d | 15mm |
| G (Thread) | M14mm |
| B | 12mm |
| C1 | 9mm |
| h | 63mm |
| d1 | 18mm |
| d2 | 38mm |
| dk | 22mm |
| l1 | 36mm |
| l2 | 82mm |
| l7 | 18mm |
| tilt angle α | 8 deg |
| weight | 0.14kg |
| basic load rating dyn C | 13.4 kN |
| basic load rating stat Co | 36 kN |
| radial clearance CN | 40-82 µm |
