• Durbal EMN17-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M16 Thread
  • Durbal
1 2

SKU: EMN17-20-501-DURB

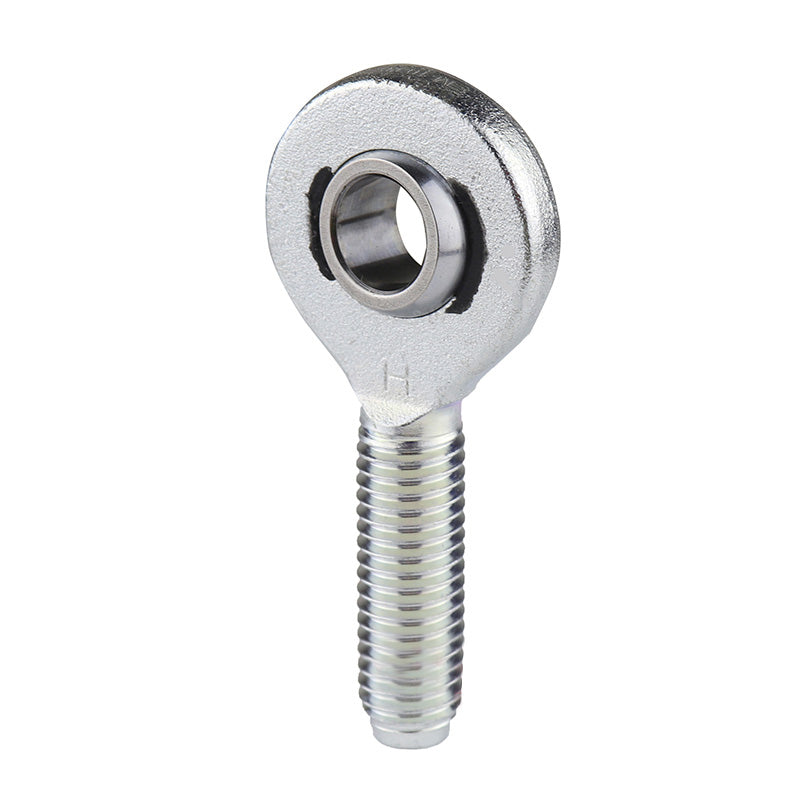

Durbal EMN17-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M16 Thread

Durbal EMN17-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M16 Thread
$52.76 ex VAT
$52.76 ex VAT
Sale Sold out

Equivalent to: GAR17DO SA17ES

In stock

Price Break
10+ $35.34
19+ $33.36
29+ $32.96
39+ $32.56
49+ $32.17
74+ $31.77
99+ $29.78
199+ $29.39
249+ $28.99
499+ $28.59
999+ $27.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_EMNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
Brand / Quality:
Durbal - High Quality
Thread Size:
M16
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
17mm
Technical
Thread Direction -501 (Right)
d 17mm
G (Thread) M16mm
B 14mm
C1 10mm
h 69mm
d1 20mm
d2 44mm
dk 25mm
l1 40mm
l2 91mm
l7 23mm
tilt angle α 10 deg
weight 0.19kg
basic load rating dyn C 19.2 kN
basic load rating stat Co 45 kN
radial clearance CN 40-82 µm
