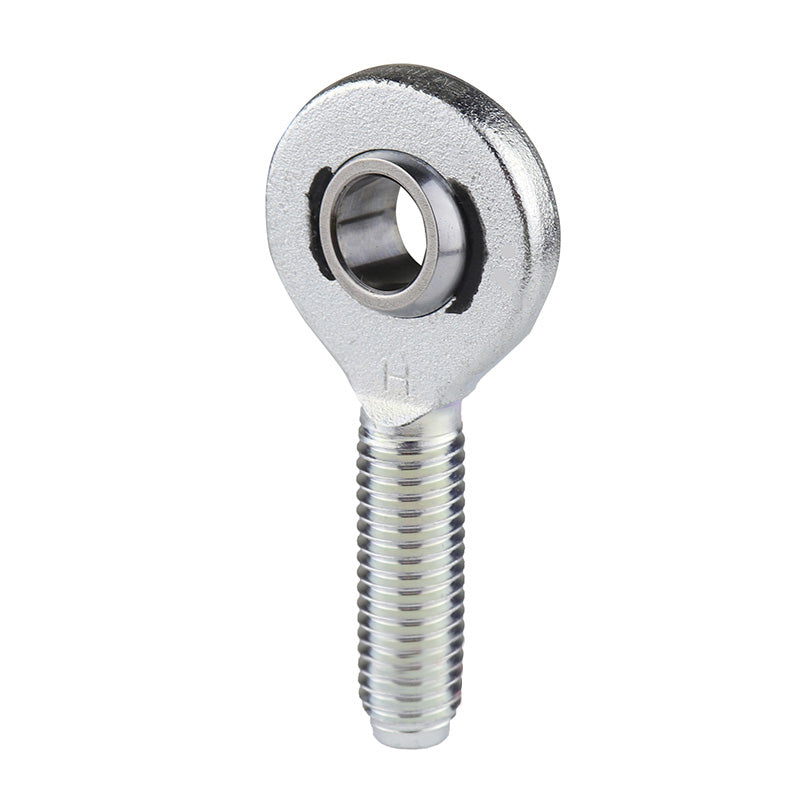

Durbal EMN20-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M20x1.5 Thread

Name: Durbal EMN20-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M20x1.5 Thread
Brand: Durbal
SKU: EMN20-20-502-DURB
Price: 60.68 USD
Availability: InStock

$60.68 ex VAT

Sale Sold out

In stock

Price Break

10+ $40.65

19+ $38.36

29+ $37.91

39+ $37.45

49+ $36.99

74+ $36.54

99+ $34.25

199+ $33.80

249+ $33.34

499+ $32.88

999+ $31.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

DESC_EMNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually

Brand / Quality:: Durbal - High Quality
Thread Size:: M20x1.5
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 20mm

Technical

Thread Direction	-502 (Left)
d	20mm
G (Thread)	M20x1.5mm
B	16mm
C1	12mm
h	78mm
d1	24mm
d2	51mm
dk	29mm
l1	47mm
l2	103.5mm
l7	25mm
tilt angle α	10 deg
weight	0.31kg
basic load rating dyn C	25.2 kN
basic load rating stat Co	60 kN
radial clearance CN	40-82 µm
