SKU: EMN25-20-501-DURB

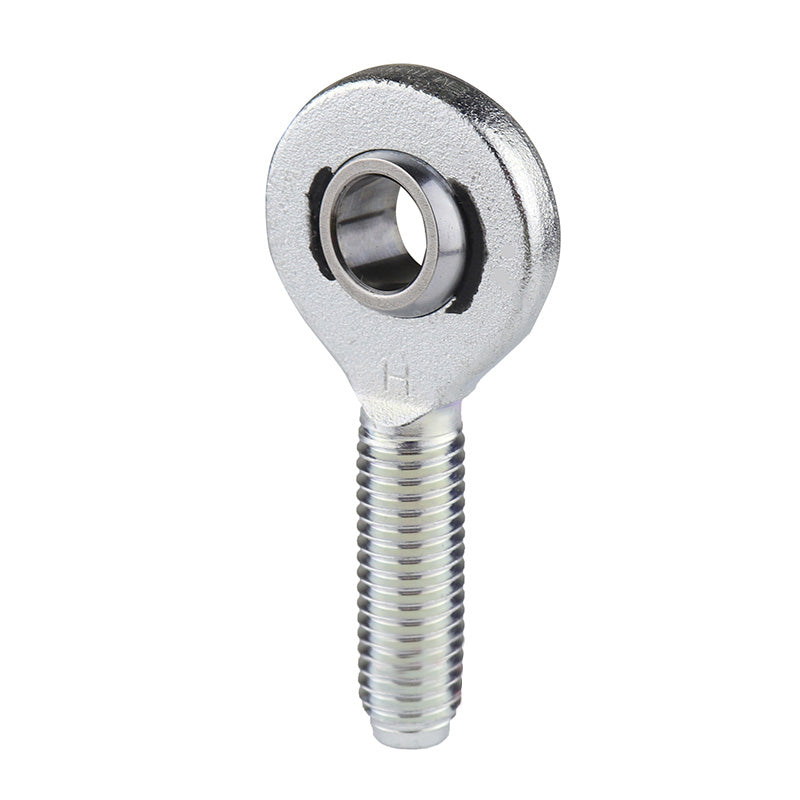

Durbal EMN25-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M24x2 Thread
Durbal EMN25-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M24x2 Thread
Regular price
$74.98
ex VAT
Regular price
Sale price
$74.98
ex VAT
Equivalent to: GAR25DO SA25ES
In stock
Price Break
10+
$50.22
19+
$47.40
29+
$46.84
39+
$46.27
49+
$45.71
74+
$45.14
99+
$42.32
199+
$41.76
249+
$41.19
499+
$40.63
999+
$39.50
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DESC_EMNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M24x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 25mm
Technical
Technical
| Thread Direction | -501 (Right) |
|---|---|
| d | 25mm |
| G (Thread) | M24x2mm |
| B | 20mm |
| C1 | 16mm |
| h | 94mm |
| d1 | 29mm |
| d2 | 62mm |
| dk | 35.5mm |
| l1 | 57mm |
| l2 | 125mm |
| l7 | 32mm |
| tilt angle α | 9 deg |
| weight | 0.56kg |
| basic load rating dyn C | 42.4 kN |
| basic load rating stat Co | 83 kN |
| radial clearance CN | 30-100 µm |
Reviews
Reviews
☆☆☆☆☆ (0 total reviews)
