SKU: EMN35-20-502-DURB

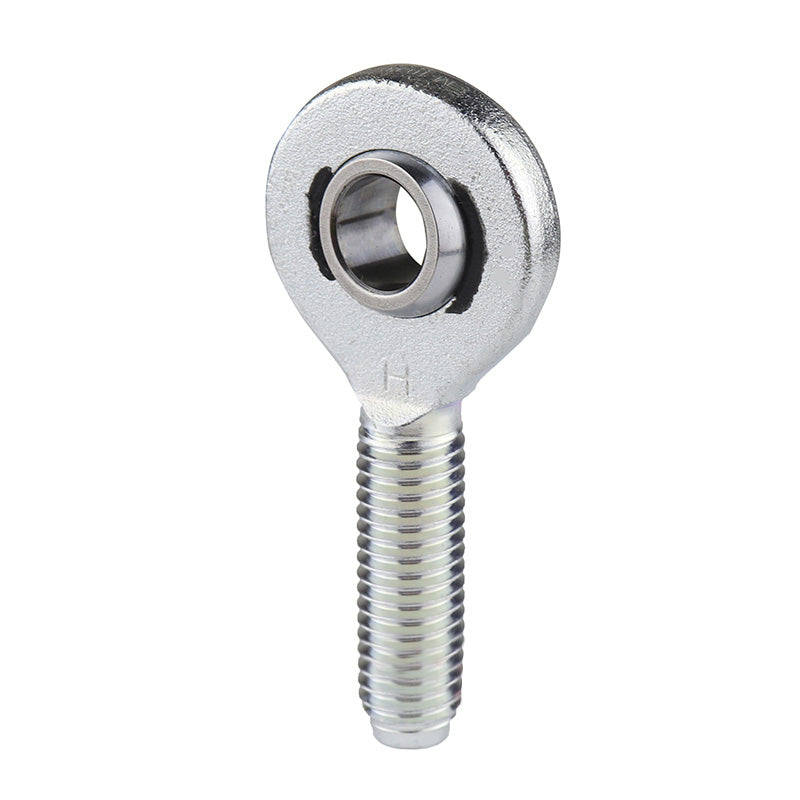

Durbal EMN35-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M36x3 Thread
Durbal EMN35-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M36x3 Thread
Regular price
$162.70
ex VAT
Regular price
Sale price
$162.70
ex VAT
In stock
Price Break
10+
$108.98
19+
$102.86
29+
$101.63
39+
$100.41
49+
$99.18
74+
$97.96
99+
$91.84
199+
$90.61
249+
$89.39
499+
$88.16
999+
$85.72
Quantity
Couldn't load pickup availability
Share this product
Description
Description
DESC_EMNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M36x3
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 35mm
Technical
Technical
| Thread Direction | -502 (Left) |
|---|---|
| d | 35mm |
| G (Thread) | M36x3mm |
| B | 25mm |
| C1 | 20mm |
| h | 140mm |
| d1 | 39mm |
| d2 | 82mm |
| dk | 47mm |
| l1 | 92mm |
| l2 | 181mm |
| l7 | 38mm |
| tilt angle α | 6 deg |
| weight | 1.4kg |
| basic load rating dyn C | 70.4 kN |
| basic load rating stat Co | 146 kN |
| radial clearance CN | 30-100 µm |
