SKU: EMN45-20-501-DURB

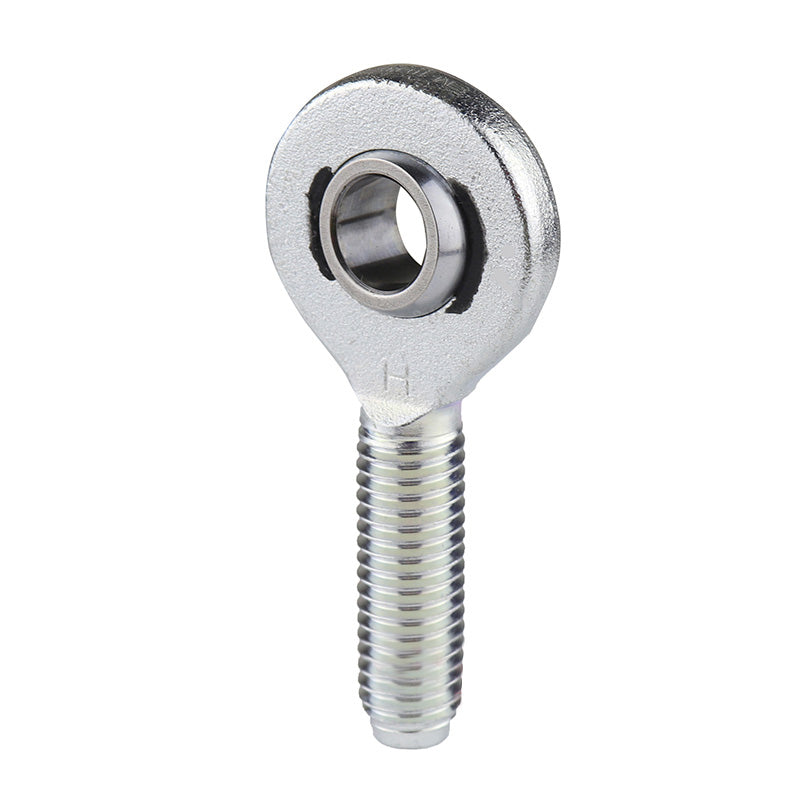

Durbal EMN45-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M45x3 Thread

Name: Durbal EMN45-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M45x3 Thread
Brand: Durbal
SKU: EMN45-20-501-DURB
Price: 325.17 USD
Availability: InStock

$325.17 ex VAT

Sale Sold out

Equivalent to: GAR45DO SA45ES

In stock

Price Break

10+ $217.81

19+ $205.57

29+ $203.13

39+ $200.68

49+ $198.23

74+ $195.78

99+ $183.55

199+ $181.10

249+ $178.65

499+ $176.21

999+ $171.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

DESC_EMNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually

Brand / Quality:: Durbal - High Quality
Thread Size:: M45x3
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 45mm

Technical

Thread Direction	-501 (Right)
d	45mm
G (Thread)	M45x3mm
B	32mm
C1	25mm
h	165mm
d1	50mm
d2	102mm
dk	60mm
l1	100mm
l2	216mm
l7	50mm
tilt angle α	7 deg
weight	2.6kg
basic load rating dyn C	107 kN
basic load rating stat Co	240 kN
radial clearance CN	40-120 µm
