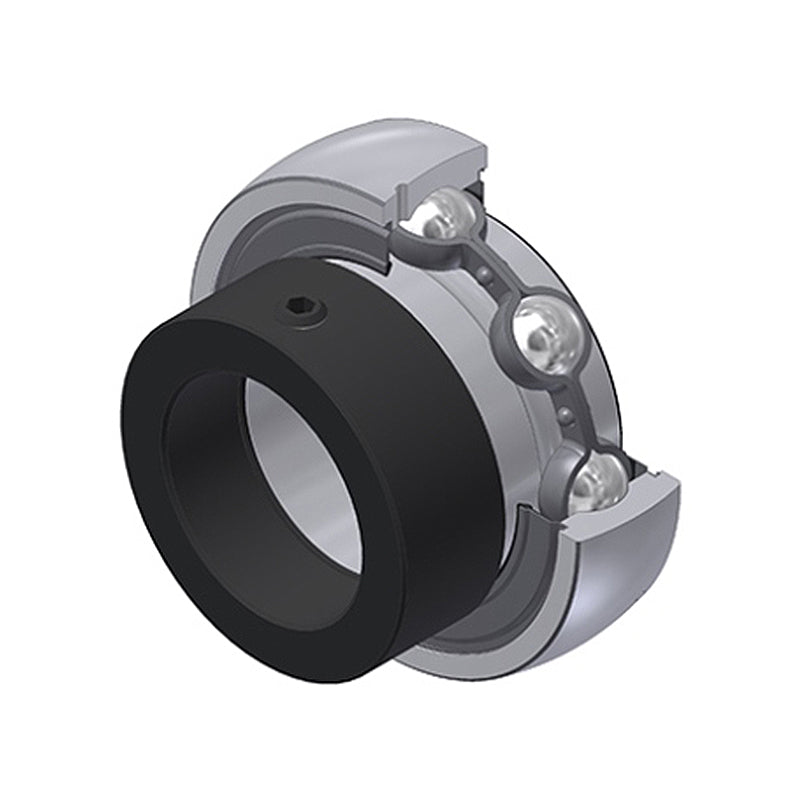

• SNR ES201-08G2 Imperial Flatback Spherical Outer Bearing Insert 1/2 inch Bore 40mm Outside Diameter with Eccentric Collar
  • SNR
1 2

SKU: ES201-08G2-SNR

SNR ES201-08G2 Imperial Flatback Spherical Outer Bearing Insert 1/2 inch Bore 40mm Outside Diameter with Eccentric Collar

SNR ES201-08G2 Imperial Flatback Spherical Outer Bearing Insert 1/2 inch Bore 40mm Outside Diameter with Eccentric Collar
$16.77 ex VAT
$16.77 ex VAT
Sale Sold out

Equivalent to: ES201-08

In stock

Price Break
3+ $11.24
5+ $10.60
9+ $10.48
19+ $10.35
49+ $10.23
74+ $10.10
99+ $9.47
199+ $9.34
249+ $9.22
499+ $9.09
999+ $8.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Thread Size:
1/4-28UNF
Inside Diameter:
12.7mm = 0.5 (1/2) inch
Outside Diameter:
40mm
Width:
28.6mm
Style:
ES
Technical
d 1/2 inch
d 12.7mm
D 40mm
C 12mm
B 19.1mm
B1 28.6mm
B2 13.5mm
d1 27.2mm
S 6.5mm
m 5mm
C1 3.6mm
r min 0.6mm
G 1/4-28UNF
Wrench Size 1/8 inch
Set screw torque 3.7 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 9.6kN
Static load rating C0 4.8kN
Weight 0.1kg
