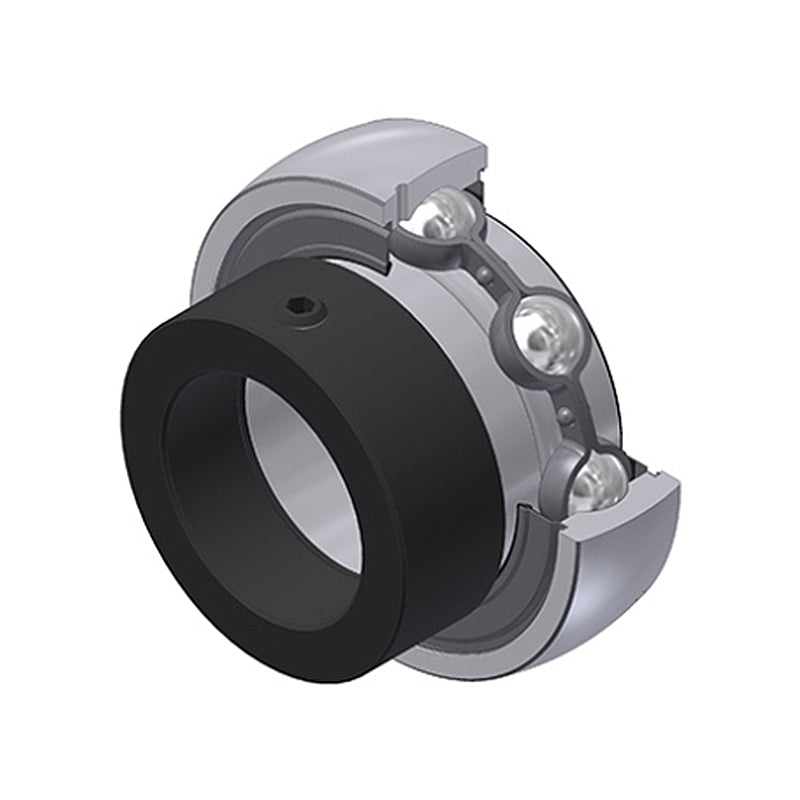

• SNR ES209-28G2 Imperial Flatback Spherical Outer Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter with Eccentric Collar
  • SNR
1 2

SKU: ES209-28G2-SNR

SNR ES209-28G2 Imperial Flatback Spherical Outer Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter with Eccentric Collar

SNR ES209-28G2 Imperial Flatback Spherical Outer Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter with Eccentric Collar
$37.92 ex VAT
$37.92 ex VAT
Sale Sold out

Equivalent to: ES209-28

In stock

Price Break
3+ $25.40
5+ $23.98
9+ $23.69
19+ $23.40
49+ $23.12
74+ $22.83
99+ $21.41
199+ $21.12
249+ $20.84
499+ $20.55
999+ $19.98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Outside Diameter:
85mm
Width:
43.7mm
Style:
ES
Technical
d 1-3/4 inch
d 44.45mm
D 85mm
C 19mm
B 30.2mm
B1 43.7mm
B2 18.3mm
d1 62mm
S 11mm
m 6.5mm
C1 6.5mm
r min 1.1mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 31.9kN
Static load rating C0 20.8kN
Weight 0.7kg
