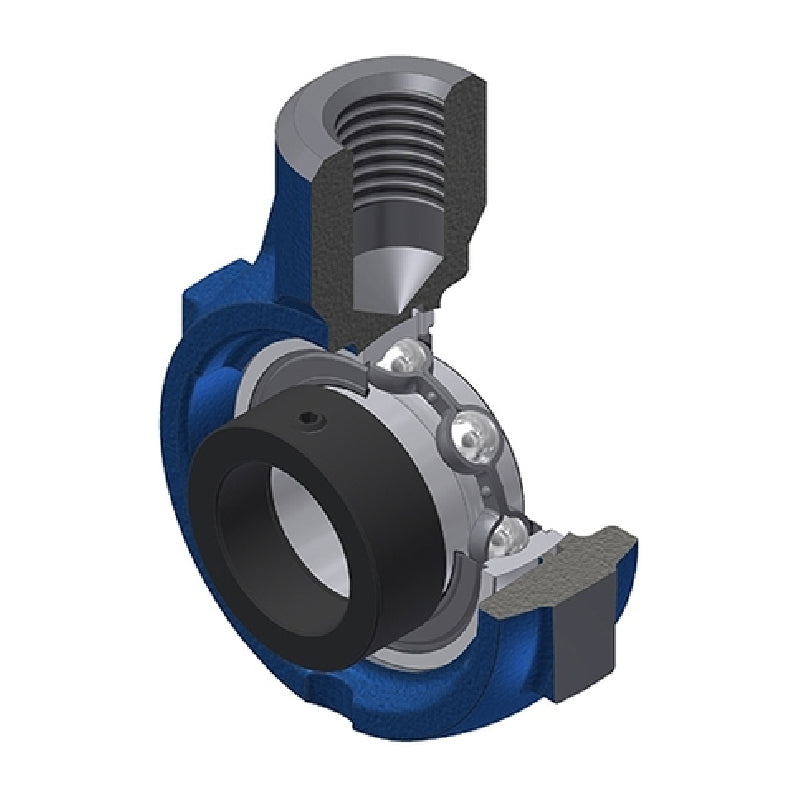

• SNR ESEHE204 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
  • SNR
1 2

SKU: ESEHE204-SNR

SNR ESEHE204 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days

SNR ESEHE204 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
$31.30 ex VAT
$31.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.97
4+ $19.79
9+ $19.56
19+ $19.32
49+ $19.09
99+ $18.85
499+ $17.67
999+ $17.44
1999+ $17.20
2999+ $16.96
4999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
ESEHE
Technical

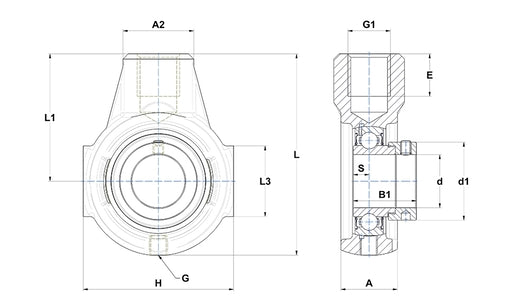

--- Dimensions
Shaft diameter d 20mm
A 25mm
A2 30mm
B1 30.9mm
d1 32.4mm
E 21mm
H 65mm
L 91mm
L1 58mm
L3 38mm
S 7.5mm
G R1/8″
G1 M16
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 0.55 kg
