SKU: ESEHE209-SNR

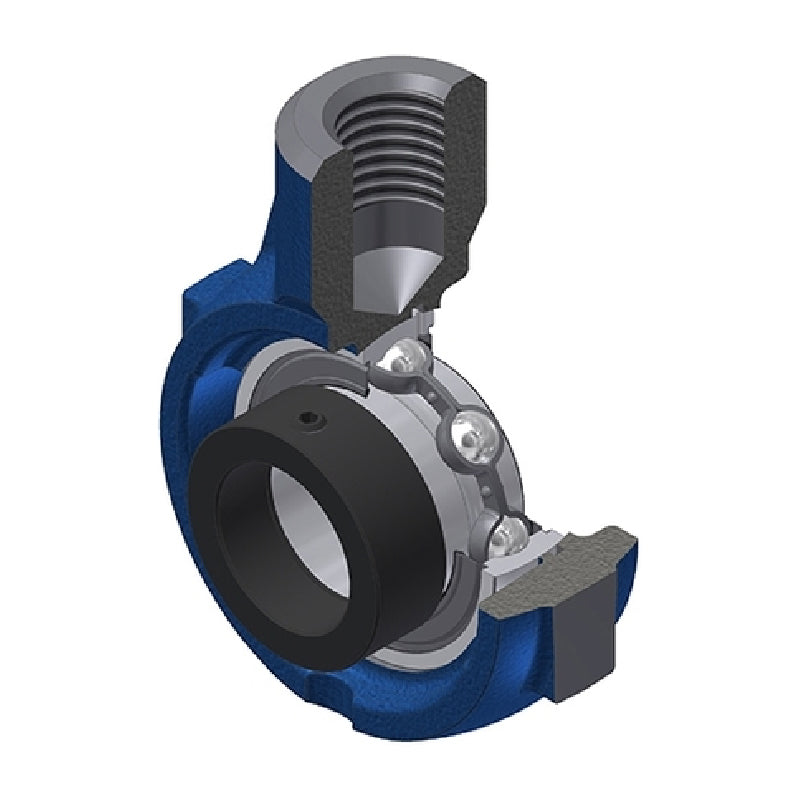

SNR ESEHE209 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
SNR ESEHE209 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
Regular price
$61.48
ex VAT
Regular price
Sale price
$61.48
ex VAT
In stock
Price Break
3+
$41.18
4+
$38.86
9+
$38.40
19+
$37.94
49+
$37.48
99+
$37.01
499+
$34.70
999+
$34.24
1999+
$33.78
2999+
$33.31
4999+
$32.39
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- ESEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 40mm |
| A2 | 40mm |
| B1 | 43.7mm |
| d1 | 62mm |
| E | 24mm |
| H | 110mm |
| L | 145mm |
| L1 | 90mm |
| L3 | 45mm |
| S | 11mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.89 kg |
