SKU: ESFA208-SNR

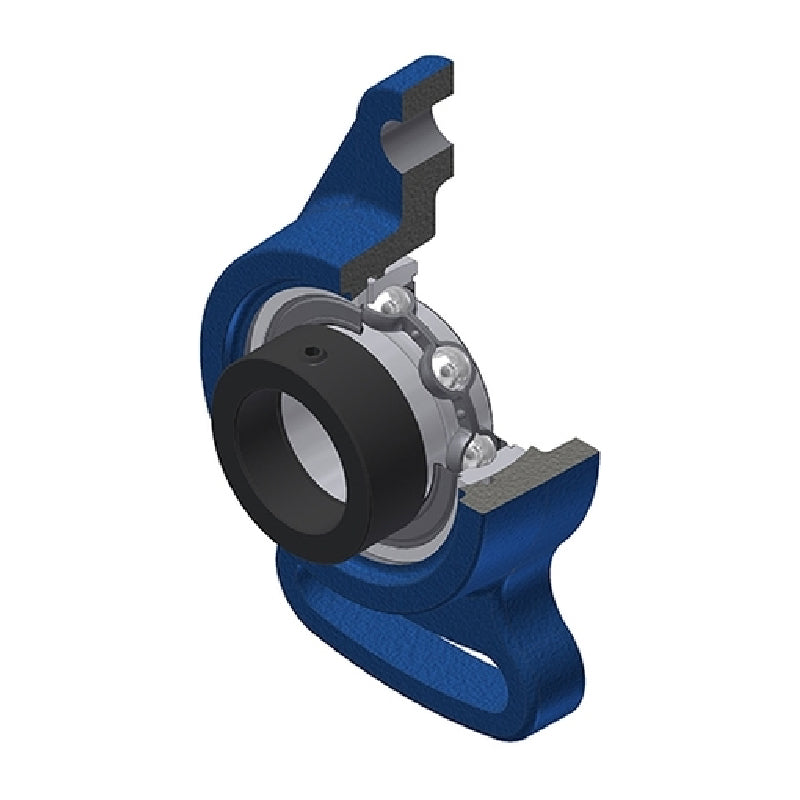

SNR ESFA208 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
SNR ESFA208 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
Regular price
$58.90
ex VAT
Regular price
Sale price
$58.90
ex VAT
In stock
Price Break
3+
$43.88
4+
$42.10
9+
$41.22
19+
$39.89
49+
$39.00
99+
$36.79
499+
$31.02
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- ESFA
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 16mm |
| A2 | 53.7mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 58mm |
| e | 21mm |
| H | 175mm |
| J | 144mm |
| J1 | 71mm |
| L | 100mm |
| L1 | 87mm |
| N | 15mm |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.65 kg |
